MP-3020-2100-40-90

Luminus Devices Inc.

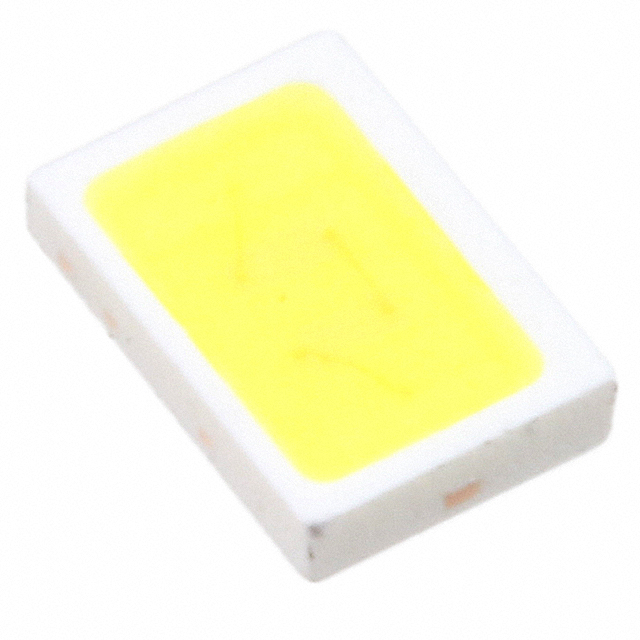

LED MP3020 NEUT WHT 4000K 3020

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MP-3020-2100-40-90

Luminus Devices Inc.

LED MP3020 NEUT WHT 4000K 3020

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MP-3020-2100-40-90

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	90
Current - Max [Max]	120 mA
Current - Test	120 mA
Flux @ 25°C, Current - Test	95 lm
Height - Seated (Max) [Max] [z]	0.52 mm
Height - Seated (Max) [Max] [z]	0.02 "
Lumens/Watt @ Current - Test	94 lm/W
Mounting Type	Surface Mount
Package / Case	1208
Package / Case	3020 Metric
Size / Dimension [x]	3 mm
Size / Dimension [x]	0.118 in
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	3020
Thermal Resistance of Package [custom]	23 °C/W
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	6.3 V

MP-3020 Series

Part	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Supplier Device Package	Flux @ 25°C, Current - Test	Viewing Angle	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Thermal Resistance of Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Color	CCT (K)	CRI (Color Rendering Index)	Thermal Resistance of Package [custom]
Luminus Devices Inc. MP-3020-3100-50-80	135 lm/W	1208	3020 Metric	3020	128 lm	120 °	0.52 mm	0.02 "	Surface Mount	16 °C/W	2 mm	3 mm	0.079 in	0.118 in	100 mA	120 mA	9.5 V	Cool White	5000 K	80
Luminus Devices Inc. MP-3020-3100-50-70	145 lm/W	1208	3020 Metric	3020	138 lm	120 °	0.52 mm	0.02 "	Surface Mount	16 °C/W	2 mm	3 mm	0.079 in	0.118 in	100 mA	120 mA	9.5 V	Cool White	5000 K	70
Luminus Devices Inc. MP-3020-3100-35-90	121 lm/W	1208	3020 Metric	3020	115 lm	120 °	0.52 mm	0.02 "	Surface Mount	16 °C/W	2 mm	3 mm	0.079 in	0.118 in	100 mA	120 mA	9.5 V	Warm White	3500 K	90
Luminus Devices Inc. MP-3020-2100-40-90	94 lm/W	1208	3020 Metric	3020	95 lm	110 °	0.52 mm	0.02 "	Surface Mount		2 mm	3 mm	0.079 in	0.118 in	120 mA	120 mA	6.3 V	Neutral White	4000 K	90	23 °C/W
Luminus Devices Inc. MP-3020-2100-65-70	110 lm/W	1208	3020 Metric	3020	90 lm	110 °	0.52 mm	0.02 "	Surface Mount		2 mm	3 mm	0.079 in	0.118 in	120 mA	120 mA	6.1 V	Cool White	6500 K	70	23 °C/W
Luminus Devices Inc. MP-3020-3100-30-90	119 lm/W	1208	3020 Metric	3020	113 lm	120 °	0.52 mm	0.02 "	Surface Mount	16 °C/W	2 mm	3 mm	0.079 in	0.118 in	100 mA	120 mA	9.5 V	Warm White		90
Luminus Devices Inc. MP-3020-2100-57-80	85 lm/W	1208	3020 Metric	3020	86 lm	110 °	0.52 mm	0.02 "	Surface Mount		2 mm	3 mm	0.079 in	0.118 in	120 mA	120 mA	6.3 V	Cool White	5700 K	80	23 °C/W
Luminus Devices Inc. MP-3020-3100-40-80	135 lm/W	1208	3020 Metric	3020	128 lm	120 °	0.52 mm	0.02 "	Surface Mount	16 °C/W	2 mm	3 mm	0.079 in	0.118 in	100 mA	120 mA	9.5 V	Neutral White	4000 K	80

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	80000	$ 0.06
		125000	$ 0.06

Description

General part information

MP-3020 Series

LED Lighting MP-3020 White, Neutral 4000K 6.3V 120mA 110° 1208 (3020 Metric)
