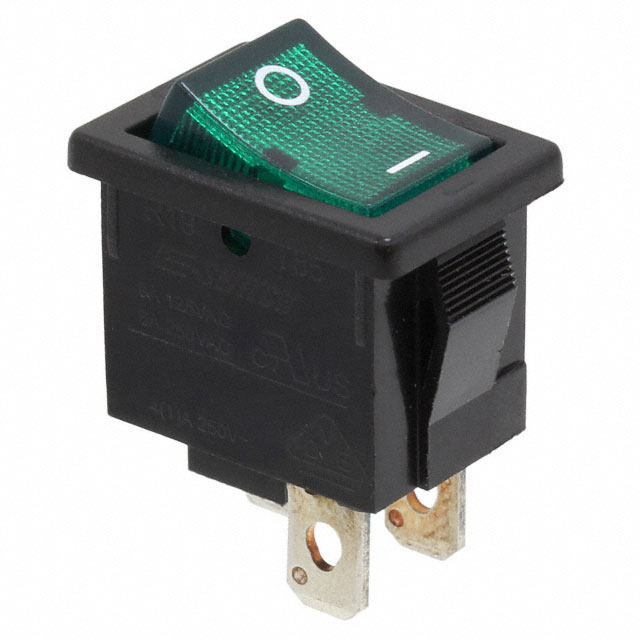

R1973ABLKGILGF3

Active

E-Switch

SWITCH ROCKER SPST 9A 125V

Deep-Dive with AI

Search across all available documentation for this part.

R1973ABLKGILGF3

Active

E-Switch

SWITCH ROCKER SPST 9A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1973ABLKGILGF3

Actuator Marking	O I
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Green
Current Rating (Amps)	9 A
Electrical Life	10000 Cycles
Illumination Type, Color	Green, Incandescent
Illumination Voltage (Nominal)	12 VDC
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

R1973ABL Series

Part	Termination Style	Mechanical Life	Color - Actuator/Cap	Mounting Type	Voltage Rating - AC	Circuit	Electrical Life	Current Rating (Amps)	Actuator Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Actuator Marking	Illumination Voltage (Nominal)
E-Switch R1973ABLKRILFF3	Quick Connect - 0.187" (4.7mm)	30000 Steps	Red	Panel Mount Snap-In	125 V	SPST	10000 Cycles	9 A	Concave (Curved) - Illuminated	On-Off	65 °C	-30 ░C	Incandescent Red	O -	12 VDC
E-Switch R1973ABLKREDEF2	Quick Connect - 0.187" (4.7mm)	30000 Steps	Red	Panel Mount Snap-In	125 V	SPST	10000 Cycles	9 A	Concave (Curved) - Illuminated	On-Off	65 °C	-30 ░C	Neon Red	No Marking	250 VAC
E-Switch R1973ABLKRILIF1	Quick Connect - 0.187" (4.7mm)	30000 Steps	Red	Panel Mount Snap-In	125 V	SPST	10000 Cycles	9 A	Concave (Curved) - Illuminated	On-Off	65 °C	-30 ░C	Neon Red	ON OFF Vertical	125 VAC
E-Switch R1973ABLKREDFF2	Quick Connect - 0.187" (4.7mm)	30000 Steps	Red	Panel Mount Snap-In	125 V	SPST	10000 Cycles	9 A	Concave (Curved) - Illuminated	On-Off	65 °C	-30 ░C	Neon Red	O -	250 VAC
E-Switch R1973ABLKBLKIF0	Quick Connect - 0.187" (4.7mm)	30000 Steps	Black	Panel Mount Snap-In	125 V	SPST	10000 Cycles	9 A	Concave (Curved)	On-Off	65 °C	-30 ░C		ON OFF Vertical
E-Switch R1973ABLKYILEF3	Quick Connect - 0.187" (4.7mm)	30000 Steps	Yellow	Panel Mount Snap-In	125 V	SPST	10000 Cycles	9 A	Concave (Curved) - Illuminated	On-Off	65 °C	-30 ░C	Incandescent Yellow	No Marking	12 VDC
E-Switch R1973ABLKBLKEF0	Quick Connect - 0.187" (4.7mm)	30000 Steps	Black	Panel Mount Snap-In	125 V	SPST	10000 Cycles	9 A	Concave (Curved)	On-Off	65 °C	-30 ░C		No Marking
E-Switch R1973ABLKGILGF3	Quick Connect - 0.187" (4.7mm)	30000 Steps	Green	Panel Mount Snap-In	125 V	SPST	10000 Cycles	9 A	Concave (Curved) - Illuminated	On-Off	65 °C	-30 ░C	Green Incandescent	O I	12 VDC
E-Switch R1973ABLKRILIF3	Quick Connect - 0.187" (4.7mm)	30000 Steps	Red	Panel Mount Snap-In	125 V	SPST	10000 Cycles	9 A	Concave (Curved) - Illuminated	On-Off	65 °C	-30 ░C	Incandescent Red	ON OFF Vertical	12 VDC
E-Switch R1973ABLKCLREF1GRN	Quick Connect - 0.187" (4.7mm)	30000 Steps	Clear	Panel Mount Snap-In	125 V	SPST	10000 Cycles	9 A	Concave (Curved)	On-Off	65 °C	-30 ░C		No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.60
		10	$ 2.34
		25	$ 2.21
		50	$ 2.11
		200	$ 2.01
		400	$ 1.92
		600	$ 1.78
		1000	$ 1.70

Description

General part information

R1973ABL Series

Rocker Switch SPST 9A (AC) 125 V Panel Mount, Snap-In
