General part information

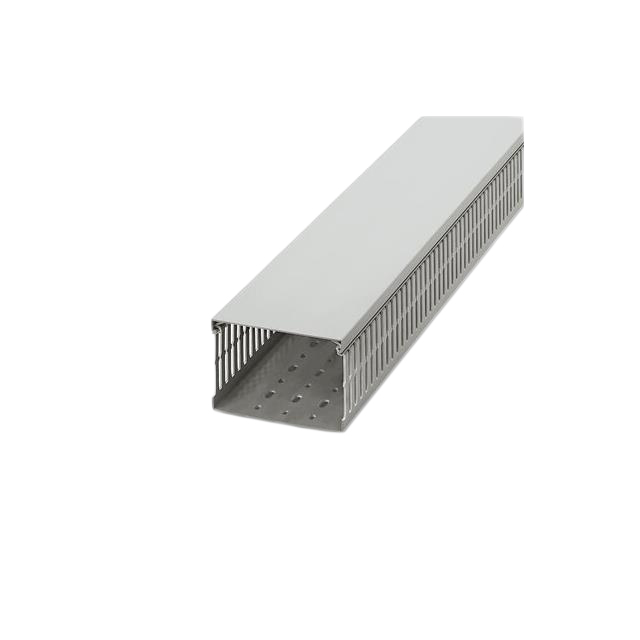

Wire Duct Gray Solid (Raceway), 2 Piece Rivet 6.56' (2.00m)
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 3240366 | CD-HF 120 Series |
|---|---|---|
| Color | Gray | Gray, Blue |
| Features | Separate Snap in Lid (Included) | Separate Snap in Lid (Included) |
| Height | - | 2.362 in |
| Height | - | 60 mm |
| Height [diameter] | 80 mm | 80 mm |
| Height [diameter] | 3.15 in | 3.15 in |
| Length [x] | 2 m | 2 m |
| Length [x] | 6.56 ft | 6.56 ft |
| Material | PC/ABS, Halogen Free | PC/ABS, Halogen Free |
| Mounting Type | Rivet | Rivet |
| Width [y] | 4.724 " | 4.724 " |
| Width [y] | 120 mm | 120 mm |
| Wire Duct Type | 2 Piece | 2 Piece |
| Wire Duct Type | Solid (Raceway) | Solid (Raceway) |
WIRE DUCT SOLID 2PC RIVET 6.56'
| Part | Width [y] | Width [y] | Color | Wire Duct Type | Wire Duct Type | Material | Height [z] | Height [z] | Features | Mounting Type | Length [x] | Length [x] | Height [diameter] | Height [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3240365 | 4.724 " | 120 mm | Gray | 2 Piece | Solid (Raceway) | PC/ABS, Halogen Free | 2.362 in | 60 mm | Separate Snap in Lid (Included) | Rivet | 2 m | 6.56 ft | ||
Phoenix Contact 3240608 | 4.724 " | 120 mm | Blue | 2 Piece | Solid (Raceway) | PC/ABS, Halogen Free | Separate Snap in Lid (Included) | Rivet | 2 m | 6.56 ft | 80 mm | 3.15 in | ||
Phoenix Contact 3240366 | 4.724 " | 120 mm | Gray | 2 Piece | Solid (Raceway) | PC/ABS, Halogen Free | Separate Snap in Lid (Included) | Rivet | 2 m | 6.56 ft | 80 mm | 3.15 in |
