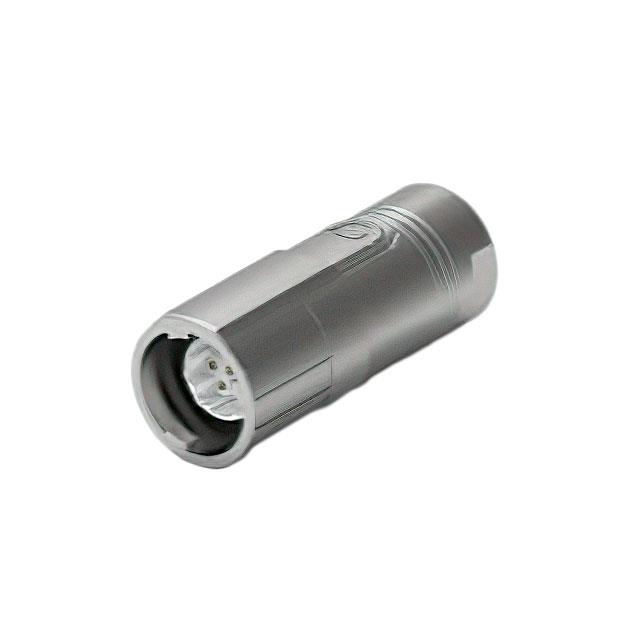

ASA046N0007050A000
ActiveTE Intercontec
CONN PLG HSG FMALE 12POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASA046N0007050A000
ActiveTE Intercontec
CONN PLG HSG FMALE 12POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASA046N0007050A000 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Fastening Type | Push-Twist |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Housing Color | Silver |
| Includes | 1 Backshell, 1 Connector, 1 Cable Clamp |
| Ingress Protection | IP66/IP67 |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.13 | |
| 10 | $ 14.40 | |||
Description
General part information
ASA04 Series
12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
