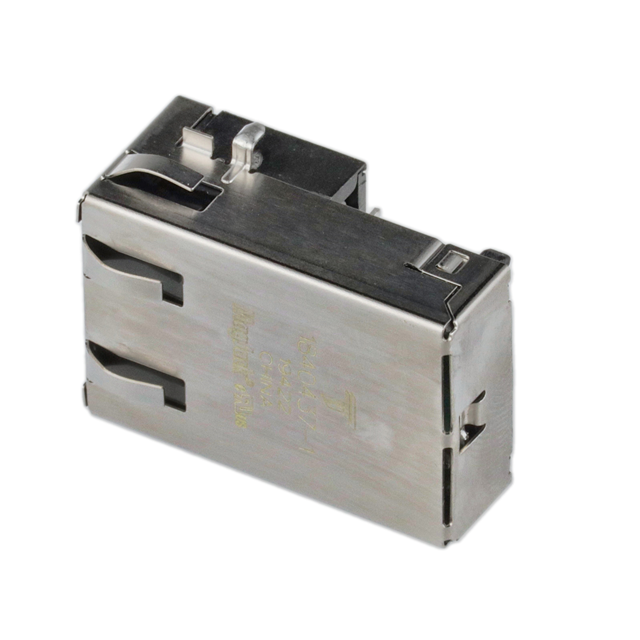

1840437-1

Active

TRP Connector B.V.

CONN JACK 1 PORT 1000 BASE-T PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1 PORT 1000 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1 PORT 1000 BASE-T PCB

Part	Tab Direction	Connector Type	LED Color	Shielding	Mounting Type	Shield Material	Applications	Contact Finish	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Cores per Jack	Termination	Height Above Board	Height Above Board	Contact Material	Housing Material
TRP Connector B.V. 1840437-1	Down	RJ45	Green, Orange - Yellow	Shielded, EMI Finger	Board Edge, Through Hole	Brass	10/100/1000 Base-T, AutoMDIX	Gold	90 °	70 °C	0 °C	50 µin	1.27 µm	Board Guide	8	Solder	0.29 in	7.37 mm	Phosphor Brass	Nylon FR52, Polyamide (PA FR52)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Port RJ45Board Edge, Through Hole 10/100/1000 Base-T, AutoMDIX
