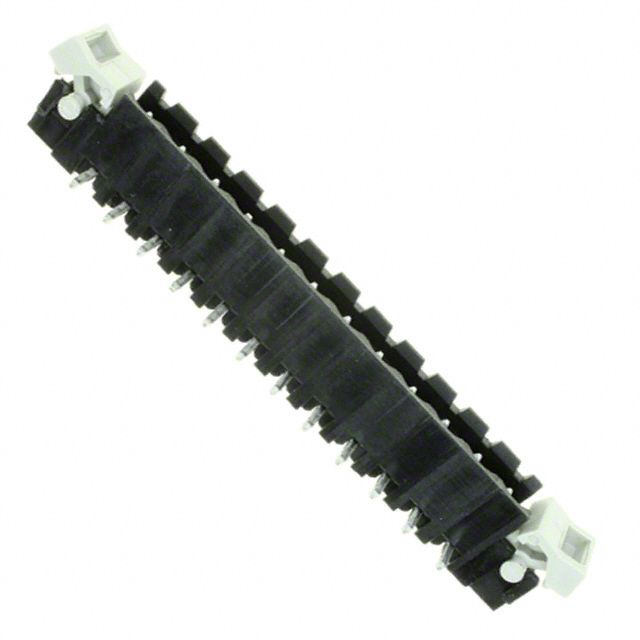

ELFH12210J

Active

AMPHENOL PCD

TERM BLOCK HDR 12POS 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 12POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH12210J

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin-Lead
Contact Tail Length	3.94 mm
Contact Tail Length	0.155 in
Features	Ejectors
Header Orientation	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	8.1 mm
Insulation Height	0.319 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	12
Operating Temperature	105 C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	12
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Mounting Type	Insulation Height	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Positions	Type	Contact Material	Contact Mating Finish	Positions Per Level	Number of Levels	Contact Tail Length	Contact Tail Length	Color	Housing Material	Voltage - UL	Termination Style	Header Orientation	Material Flammability Rating	Insulation Height	Operating Temperature	Features
AMPHENOL PCD ELFH12260	Through Hole	12.07 mm	0.475 in	-40 °C	105 ░C	0.2 in	5.08 mm	12	Header Male Pins Shrouded (2 Side)	Brass	Tin	12	1	3.94 mm	0.155 in	Black	Polybutylene Terephthalate (PBT)	300 V	Solder	Vertical	UL94 V-0
AMPHENOL PCD ELFH12210J	Through Hole	8.1 mm				0.2 in	5.08 mm	12	Header Male Pins Shrouded (4 Side)	Copper Alloy	Tin-Lead	12	1	3.94 mm	0.155 in	Black	Polybutylene Terephthalate (PBT)	300 V	Solder	90° Right Angle	UL94 V-0	0.319 in	105 C	Ejectors
AMPHENOL PCD ELFH1224G
AMPHENOL PCD ELFH12290	Through Hole	12.07 mm	0.475 in	-40 °C	105 ░C	0.2 in	5.08 mm	12	Header Male Pins Shrouded (2 Side)	Brass	Tin	12	1	3.94 mm	0.155 in	Black	Polyamide (PA46) Nylon 4/6	300 V	Solder	Vertical	UL94 V-0
AMPHENOL PCD ELFH12250	Through Hole	8.1 mm		-40 °C	105 ░C	0.2 in	5.08 mm	12	Header Male Pins Shrouded (4 Side)	Brass	Tin	12	1			Black	Polybutylene Terephthalate (PBT)	300 V	Solder	Vertical	UL94 V-0	0.319 in
AMPHENOL PCD ELFH1223GE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.12

General part information

12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
