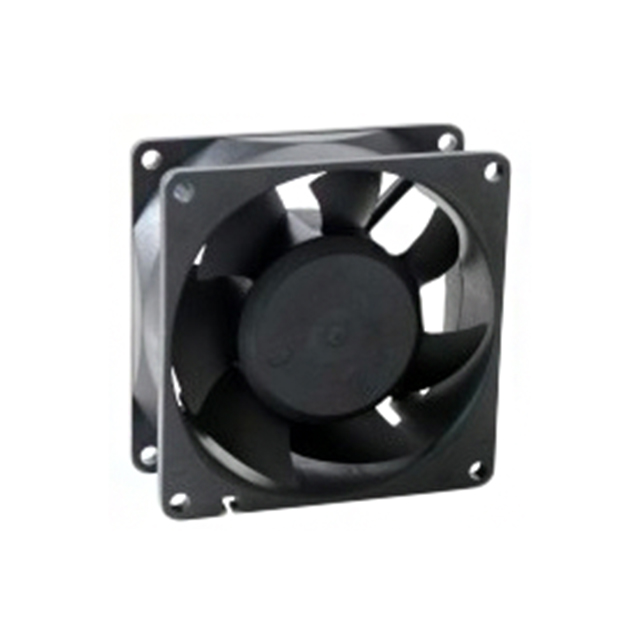

MR8032M12B2-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 80X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs Datasheet +1

MR8032M12B2-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 80X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MR8032M12B2-FSR

Air Flow	67 CFM
Air Flow	1.88 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.54 A
Fan Type	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart
Material - Blade	Plastic
Material - Frame	Plastic
Noise	45.2 dB(A)
RPM	5500 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	159.4 Pa
Static Pressure	0.64 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Weight	0.32 lb
Weight	145.15 g
Width [y]	32 mm

MR8032 Series

Part	Termination	Bearing Type	Current Rating (Amps)	Static Pressure	Static Pressure	Air Flow	Air Flow	Voltage - Rated	Fan Type	Approval Agency	Weight	Weight	Features	Width [y]	Noise	Material - Blade	Material - Frame	RPM	Size / Dimension [y]	Size / Dimension [x]
Mechatronics Bearing Group MR8032H24B2-FSR	3 Wire Leads	Ball	0.35 A	190 Pa	0.763 in H2O	2.04 m³/min	73 CFM	24 VDC	Tubeaxial	CE cUL TUV UL	0.32 lb	145.15 g	Auto Restart Locked Rotor Sensor	32 mm	48.6 dB(A)	Plastic	Plastic	6000 RPM	80 mm	80 mm
Mechatronics Bearing Group MR8032H24B-FSR	2 Wire Leads	Ball	0.35 A	189.3 Pa	0.76 in H2O	2.04 m³/min	73 CFM	24 VDC	Tubeaxial	CE cUL TUV UL	0.32 lb	145.15 g	Auto Restart	32 mm	48.6 dB(A)	Plastic	Plastic	6000 RPM	80 mm	80 mm
Mechatronics Bearing Group MR8032M24B-FSR	2 Wire Leads	Ball	270 mA	159.4 Pa	0.64 in H2O	1.88 m³/min	67 CFM	24 VDC	Tubeaxial	CE cUL TUV UL	0.32 lb	145.15 g	Auto Restart	32 mm	45.2 dB(A)	Plastic	Plastic	5500 RPM	80 mm	80 mm
Mechatronics Bearing Group MR8032L24B1-FSR	3 Wire Leads	Ball	0.21 A	132.8 Pa	0.533 in H2O	1.71 m³/min	61 CFM	24 VDC	Tubeaxial	CE cUL TUV UL	0.32 lb	145.15 g	Auto Restart Speed Sensor (Tach)	32 mm	41.6 dB(A)	Plastic	Plastic	5000 RPM	80 mm	80 mm
Mechatronics Bearing Group MR8032L12B1-FSR	3 Wire Leads	Ball	0.42 A	132.8 Pa	0.533 in H2O	1.71 m³/min	61 CFM	12 VDC	Tubeaxial	CE cUL TUV UL	0.32 lb	145.15 g	Auto Restart Speed Sensor (Tach)	32 mm	41.6 dB(A)	Plastic	Plastic	5000 RPM	80 mm	80 mm
Mechatronics Bearing Group MR8032M12B2-FSR	3 Wire Leads	Ball	0.54 A	159.4 Pa	0.64 in H2O	1.88 m³/min	67 CFM	12 VDC	Tubeaxial	CE cUL TUV UL	0.32 lb	145.15 g	Auto Restart Locked Rotor Sensor	32 mm	45.2 dB(A)	Plastic	Plastic	5500 RPM	80 mm	80 mm
Mechatronics Bearing Group MR8032H12B-FSR	2 Wire Leads	Ball	0.7 A	189.3 Pa	0.76 in H2O	2.04 m³/min	73 CFM	12 VDC	Tubeaxial	CE cUL TUV UL	0.32 lb	145.15 g	Auto Restart	32 mm	48.6 dB(A)	Plastic	Plastic	6000 RPM	80 mm	80 mm
Mechatronics Bearing Group MR8032L24B2-FSR	3 Wire Leads	Ball	0.21 A	132.8 Pa	0.533 in H2O	1.71 m³/min	61 CFM	24 VDC	Tubeaxial	CE cUL TUV UL	0.32 lb	145.15 g	Auto Restart Locked Rotor Sensor	32 mm	41.6 dB(A)	Plastic	Plastic	5000 RPM	80 mm	80 mm
Mechatronics Bearing Group MR8032L12B1+6-FSR	4 Wire Leads	Ball	0.42 A	132.8 Pa	0.533 in H2O	1.71 m³/min	61 CFM	12 VDC	Tubeaxial	CE cUL TUV UL	0.32 lb	145.15 g	Auto Restart PWM Control Speed Sensor (Tach)	32 mm	41.6 dB(A)	Plastic	Plastic	5000 RPM	80 mm	80 mm
Mechatronics Bearing Group MR8032E12B1+6-FSR	4 Wire Leads	Ball	0.86 A	221.7 Pa	0.89 in H2O	2.21 m³/min	79 CFM	12 VDC	Tubeaxial	CE cUL TUV UL	0.32 lb	145.15 g	Auto Restart PWM Control Speed Sensor (Tach)	32 mm	50.4 dB(A)	Plastic	Plastic	6500 RPM	80 mm	80 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 12.55

Description

General part information

MR8032 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 67.0 CFM (1.88m³/min) 3 Wire Leads
