10GX52F 0021000

Obsolete

Belden Inc.

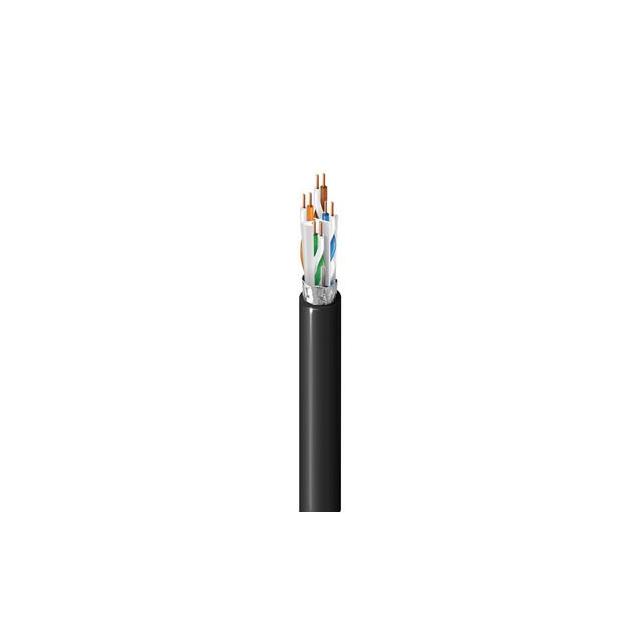

CAT6A 4PR F/UTP CMR REEL

Search across all available documentation for this part.

Obsolete

Belden Inc.

CAT6A 4PR F/UTP CMR REEL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (4 Pair) Conductor Multi-Pair, Cat6a Cable Red 23 AWG Foil 1000.0' (304.8m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	10GX52F 0021000	10GX52F Series

Cable Type	Multi-Pair, Cat6a	Multi-Pair, Cat6a
Conductor Insulation	Polyolefin (PO)	Polyolefin (PO)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	Solid	Solid
Features	Rip Cord, Drain Wire	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	6.99 mm	6.99 mm
Jacket (Insulation) Diameter [diameter]	0.275 in	0.275 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser	Poly-Vinyl Chloride (PVC), Riser
Jacket Color	Red	Blue, Gray, Black, Red
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Number of Conductors	8	8
Ratings	UL Style CMR	UL Style CMR
Shield Coverage	100 %	100 %
Shield Material	Polyester, Aluminum	Polyester, Aluminum
Shield Type	Foil	Foil
Usage	Network	Network
Voltage	300 V	300 V
Wire Gauge	23 AWG	23 AWG

CAT6A 4PR F/UTP CMR REEL

Part	Number of Conductors	Features	Conductor Material	Usage	Jacket (Insulation) Material	Jacket Color	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Shield Material	Conductor Insulation	Cable Type	Ratings	Conductor Strand	Shield Type	Wire Gauge	Shield Coverage
Belden Inc. 10GX52F 0061000	8	Drain Wire, Rip Cord	Copper, Bare	Network	Poly-Vinyl Chloride (PVC), Riser	Blue	300 V	6.99 mm	0.275 in	1000 ft	304.8 m	Aluminum, Polyester	Polyolefin (PO)	Multi-Pair, Cat6a	UL Style CMR	Solid	Foil	23 AWG	100 %
Belden Inc. 10GX52F 0081000	8	Drain Wire, Rip Cord	Copper, Bare	Network	Poly-Vinyl Chloride (PVC), Riser	Gray	300 V	6.99 mm	0.275 in	1000 ft	304.8 m	Aluminum, Polyester	Polyolefin (PO)	Multi-Pair, Cat6a	UL Style CMR	Solid	Foil	23 AWG	100 %
Belden Inc. 10GX52F 0101000	8	Drain Wire, Rip Cord	Copper, Bare	Network	Poly-Vinyl Chloride (PVC), Riser	Black	300 V	6.99 mm	0.275 in	1000 ft	304.8 m	Aluminum, Polyester	Polyolefin (PO)	Multi-Pair, Cat6a	UL Style CMR	Solid	Foil	23 AWG	100 %
Belden Inc. 10GX52F 0021000	8	Drain Wire, Rip Cord	Copper, Bare	Network	Poly-Vinyl Chloride (PVC), Riser	Red	300 V	6.99 mm	0.275 in	1000 ft	304.8 m	Aluminum, Polyester	Polyolefin (PO)	Multi-Pair, Cat6a	UL Style CMR	Solid	Foil	23 AWG	100 %
