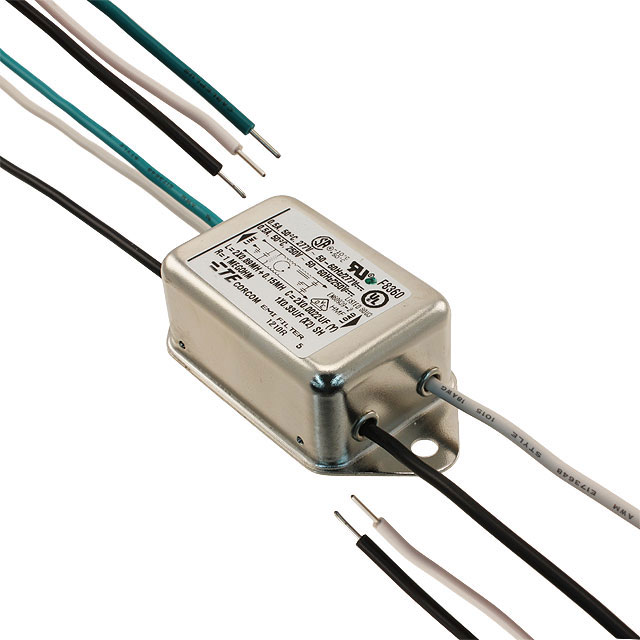

3FB3-MS
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 120V/277VAC 3A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
3FB3-MS
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 120V/277VAC 3A CHAS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3FB3-MS |
|---|---|
| Applications | General Purpose |
| Configuration | Single Stage |
| Current | 3 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 13.77 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Termination Style | Wire Leads |
| Voltage - Rated AC | 277 V, 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 25.92 | |
| 12 | $ 25.09 | |||
| 36 | $ 24.25 | |||
| 48 | $ 23.42 | |||
| 84 | $ 20.91 | |||
| 240 | $ 20.70 | |||
Description
General part information
3FB3 Series
Single Phase EMC/EMI Line Filter 3 A 120V, 277V 50 ~ 60Hz Single Stage Wire Leads
