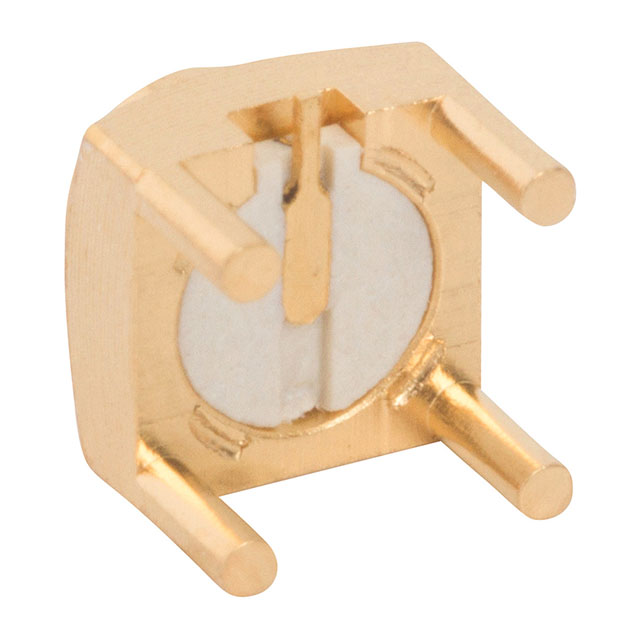

SMP-MSSB-PCT-5T

Active

AMPHENOL RF

RF CONNECTOR SMP STRAIGHT PCB SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMP-MSSB-PCT-5T

Active

AMPHENOL RF

RF CONNECTOR SMP STRAIGHT PCB SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMP-MSSB-PCT-5T	SMP-MSSB Series

Body Finish	Gold	Gold
Body Material	Brass	Brass, Phosphor Bronze
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	-	HD, SMP
Connector Type	Male Pin, Jack	Male Pin, Jack, Receptacle
Contact Termination	Solder	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP), Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	-	Snap-On
Features	Smooth Bore	Smooth Bore
Frequency - Max [Max]	18 GHz	12 - 6000 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mating Cycles	-	500 - 1000
Mounting Feature	-	Bulkhead
Mounting Type	Through Hole	Through Hole, Cutout, Board Edge, Surface Mount, Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Solder	Solder, Push On

SMP-MSSB Series

RF CONNECTOR SMP STRAIGHT PCB SM

Part	Shield Termination	Features	Center Contact Material	Body Finish	Dielectric Material	Connector Type	Mounting Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Number of Ports	Impedance	Center Contact Plating	Frequency - Max [Max]	Contact Termination	Mating Cycles	Fastening Type	Mounting Feature	Connector Style
AMPHENOL RF SMP-MSSB-PCT-5T	Solder	Smooth Bore	Brass	Gold	Liquid Crystal Polymer (LCP)	Jack, Male Pin	Through Hole	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	18 GHz	Solder
AMPHENOL RF SMP-MSSB-PCT10T	Solder	Smooth Bore	Brass	Gold	Liquid Crystal Polymer (LCP)	Jack, Male Pin	Through Hole	Gold	-40 °C	85 °C	Brass	1	50 Ohms	Gold	20 GHz	Solder	1000	Snap-On
AMPHENOL RF SMP-MSSB-PCE-4T	Solder	Smooth Bore	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Jack, Male Pin	Board Edge, Cutout, Surface Mount	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	26.5 GHz	Solder	500	Snap-On
AMPHENOL RF SMP-MSSB-PCT-10	Solder	Smooth Bore	Brass	Gold	Polytetrafluoroethylene (PTFE)	Jack, Male Pin	Through Hole	Gold	-40 °C	85 °C	Brass	1	50 Ohms	Gold	20 GHz	Solder	1000	Snap-On
AMPHENOL RF SMP-MSSB-PCS-17	Solder	Smooth Bore	Brass	Gold	Liquid Crystal Polymer (LCP)	Jack, Male Pin	Surface Mount	Gold	-40 °C	85 °C	Brass	1	50 Ohms	Gold	20 GHz	Solder	1000	Snap-On
AMPHENOL RF SMP-MSSB-PCT	Solder	Smooth Bore	Brass	Gold		Male Pin, Receptacle	Through Hole	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	6000 MHz	Solder	500	Snap-On
AMPHENOL RF SMP-MSSB-CSB	Push On	Smooth Bore	Brass	Gold	Polytetrafluoroethylene (PTFE)	Jack, Male Pin	Free Hanging (In-Line)	Gold	-55 °C	165 °C	Brass	1	50 Ohms	Gold	26.5 GHz	Solder			Bulkhead	HD, SMP
AMPHENOL RF SMP-MSSB-PCR	Solder	Smooth Bore	Beryllium Copper	Gold		Jack, Male Pin	Surface Mount	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	12 GHz	Solder	1000	Snap-On
AMPHENOL RF SMP-MSSB-PCT-1	Solder	Smooth Bore	Brass	Gold	Liquid Crystal Polymer (LCP)	Male Pin, Receptacle	Surface Mount	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	18 GHz	Solder	1000	Snap-On
AMPHENOL RF SMP-MSSB-PCT-5	Solder	Smooth Bore	Brass	Gold	Liquid Crystal Polymer (LCP)	Male Pin, Receptacle	Surface Mount, Through Hole	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	18 GHz	Solder	1000	Snap-On

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.67
		10	$ 5.66
		25	$ 5.31
		50	$ 5.05
		100	$ 4.81
		250	$ 4.61
	Tape & Reel (TR)	600	$ 4.45
		1200	$ 4.24
		1800	$ 4.12

Description

General part information

SMP-MSSB Series

SMP Connector Jack, Male Pin 50 Ohms Through Hole Solder
