SMP-MSSB-PCT-5

Active

AMPHENOL RF

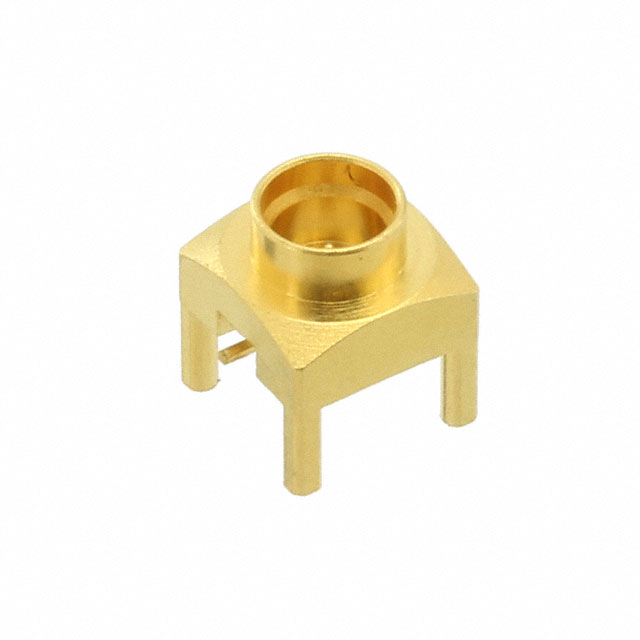

SMP STRAIGHT PCB SMOOTH BORE JACK THROUGH HOLE 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

SMP-MSSB-PCT-5

Active

AMPHENOL RF

SMP STRAIGHT PCB SMOOTH BORE JACK THROUGH HOLE 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMP-MSSB-PCT-5	SMP-MSSB Series

Body Finish	Gold	Gold
Body Material	Brass	Brass, Phosphor Bronze
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	-	HD, SMP
Connector Type	Male Pin, Receptacle	Male Pin, Jack, Receptacle
Contact Termination	Solder	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP), Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Snap-On	Snap-On
Features	Smooth Bore	Smooth Bore
Frequency - Max [Max]	18 GHz	12 - 6000 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mating Cycles	1000	500 - 1000
Mounting Feature	-	Bulkhead
Mounting Type	Surface Mount, Through Hole	Through Hole, Cutout, Board Edge, Surface Mount, Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Solder	Solder, Push On

SMP-MSSB Series

RF CONNECTOR SMP STRAIGHT PCB SM

Part	Shield Termination	Features	Center Contact Material	Body Finish	Dielectric Material	Connector Type	Mounting Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Number of Ports	Impedance	Center Contact Plating	Frequency - Max [Max]	Contact Termination	Mating Cycles	Fastening Type	Mounting Feature	Connector Style
AMPHENOL RF SMP-MSSB-PCT-5T	Solder	Smooth Bore	Brass	Gold	Liquid Crystal Polymer (LCP)	Jack, Male Pin	Through Hole	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	18 GHz	Solder
AMPHENOL RF SMP-MSSB-PCT10T	Solder	Smooth Bore	Brass	Gold	Liquid Crystal Polymer (LCP)	Jack, Male Pin	Through Hole	Gold	-40 °C	85 °C	Brass	1	50 Ohms	Gold	20 GHz	Solder	1000	Snap-On
AMPHENOL RF SMP-MSSB-PCE-4T	Solder	Smooth Bore	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Jack, Male Pin	Board Edge, Cutout, Surface Mount	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	26.5 GHz	Solder	500	Snap-On
AMPHENOL RF SMP-MSSB-PCT-10	Solder	Smooth Bore	Brass	Gold	Polytetrafluoroethylene (PTFE)	Jack, Male Pin	Through Hole	Gold	-40 °C	85 °C	Brass	1	50 Ohms	Gold	20 GHz	Solder	1000	Snap-On
AMPHENOL RF SMP-MSSB-PCS-17	Solder	Smooth Bore	Brass	Gold	Liquid Crystal Polymer (LCP)	Jack, Male Pin	Surface Mount	Gold	-40 °C	85 °C	Brass	1	50 Ohms	Gold	20 GHz	Solder	1000	Snap-On
AMPHENOL RF SMP-MSSB-PCT	Solder	Smooth Bore	Brass	Gold		Male Pin, Receptacle	Through Hole	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	6000 MHz	Solder	500	Snap-On
AMPHENOL RF SMP-MSSB-CSB	Push On	Smooth Bore	Brass	Gold	Polytetrafluoroethylene (PTFE)	Jack, Male Pin	Free Hanging (In-Line)	Gold	-55 °C	165 °C	Brass	1	50 Ohms	Gold	26.5 GHz	Solder			Bulkhead	HD, SMP
AMPHENOL RF SMP-MSSB-PCR	Solder	Smooth Bore	Beryllium Copper	Gold		Jack, Male Pin	Surface Mount	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	12 GHz	Solder	1000	Snap-On
AMPHENOL RF SMP-MSSB-PCT-1	Solder	Smooth Bore	Brass	Gold	Liquid Crystal Polymer (LCP)	Male Pin, Receptacle	Surface Mount	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	18 GHz	Solder	1000	Snap-On
AMPHENOL RF SMP-MSSB-PCT-5	Solder	Smooth Bore	Brass	Gold	Liquid Crystal Polymer (LCP)	Male Pin, Receptacle	Surface Mount, Through Hole	Gold	-65 ░C	165 °C	Brass	1	50 Ohms	Gold	18 GHz	Solder	1000	Snap-On

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.40
		10	$ 17.87
		25	$ 17.10
		50	$ 16.54
		100	$ 15.99
		300	$ 15.11
		500	$ 14.67
Newark	Each	100	$ 18.60
		250	$ 17.36

Description

General part information

SMP-MSSB Series

SMP Connector Receptacle, Male Pin 50 Ohms Surface Mount, Through Hole Solder
