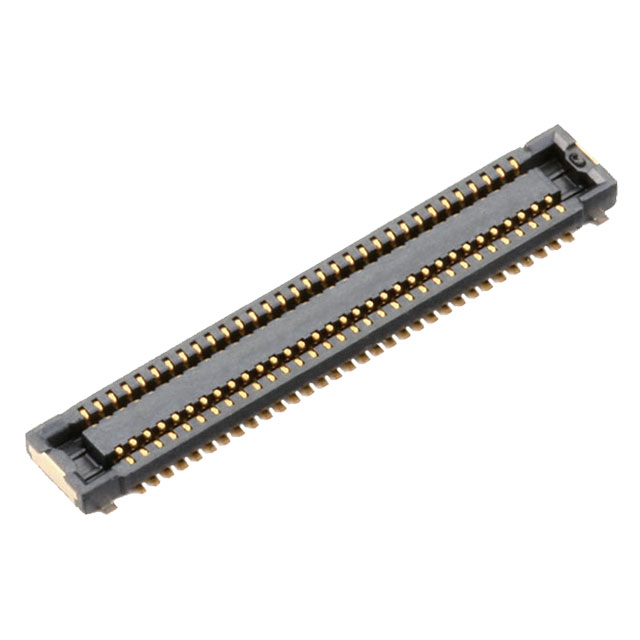

AXF5A6412A

Active

Panasonic Electric Works

CONN SOCKET 64POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 64POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5A6412A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	64
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Features	Contact Finish	Mounting Type	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Connector Type
Panasonic Electric Works AXF5A6412A	Solder Retention	Gold	Surface Mount	64	2	0.35 mm	0.014 in	0.03 in	0.75 mm	0.8 mm	Socket Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

64 Position Connector Socket, Center Strip Contacts Surface Mount Gold

Technical documentation and resources

No documents available
