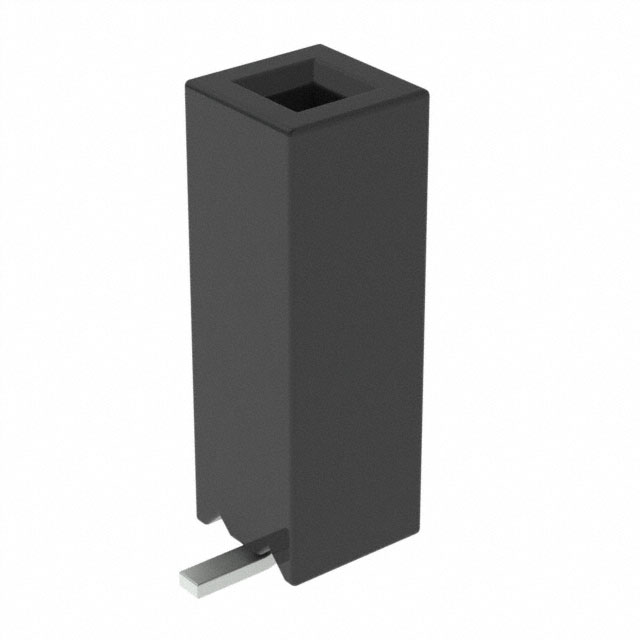

SSM-101-S-SV

Active

Samtec Inc.

CONN RCPT 1POS GOLD SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 1POS GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SSM-101-S-SV

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	572 VDC, 405 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Rows	Connector Type	Insulation Color	Contact Shape	Contact Material	Mounting Type	Contact Type	Fastening Type	Number of Positions Loaded	Style	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions	Insulation Material	Contact Finish - Post	Voltage Rating	Insulation Height	Insulation Height
Samtec Inc. SSM-101-S-SV	-55 °C	125 °C	5.2 A	1	Pass Through Receptacle	Black	Square	Phosphor Bronze	Surface Mount	Female Socket	Push-Pull	All	Board to Board Cable	Gold	30 Áin	0.76 Ám	Solder	1	Liquid Crystal Polymer (LCP)	Tin	405 VAC 572 VDC	7.37 mm	0.29 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Receptacle, Pass Through Connector Surface Mount Gold
