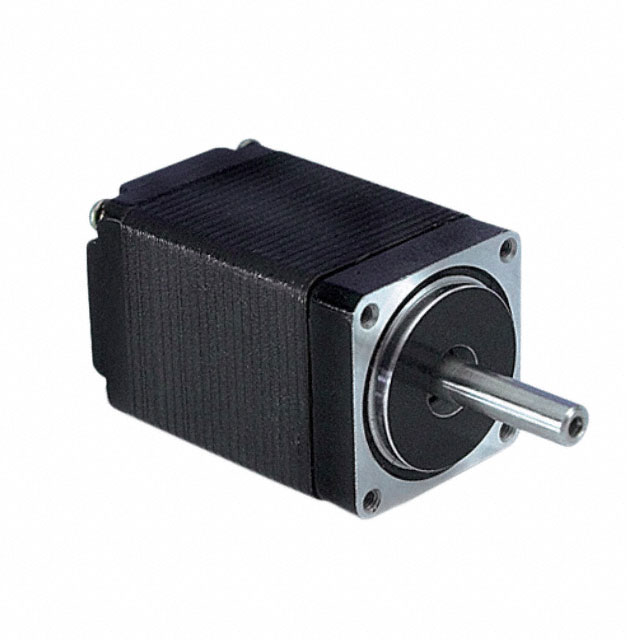

WO-211-20-02-RO

Active

LIN ENGINEERING

STEPPER MOTOR

Search across all available documentation for this part.

Active

LIN ENGINEERING

STEPPER MOTOR

Technical Specifications

Parameters and characteristics for this part

STEPPER MOTOR

Part	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	NEMA Frame Size	Features	Coil Type	Voltage - Rated	Current Rating (Amps)	Coil Resistance	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Operating Temperature [Max]	Operating Temperature [Min]	Steps per Revolution	Termination Style	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Step Angle	Mounting Hole Spacing	Mounting Hole Spacing	Size / Dimension [y]	Size / Dimension [x]
LIN ENGINEERING WO-211-20-02-RO	117.22 mNm	16.6 oz-in	11	Round Shaft	Bipolar	24 VDC	1.3 A	1.9 Ohms	20 mm	0.787 in	50 °C	-20 C	200	Wire Leads	0.197 in	5 mm	1.8 °	23 mm	0.906 in	1.11 in, 28.2 mm	1.11 in, 28.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Stepper Motor Frame Size 11 200.0 Step 1.3 A 24VDC
