LFCPNX-100-8LFG672C

Active

LATTICE SEMICONDUCTOR

LATTICE CERTUSPRO -NX GENERAL PURPOSE FPGA ON NEXUS PLATFORM (28NM FD-SOI) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

LFCPNX-100-8LFG672C

Active

LATTICE SEMICONDUCTOR

LATTICE CERTUSPRO -NX GENERAL PURPOSE FPGA ON NEXUS PLATFORM (28NM FD-SOI) ROHS COMPLIANT: YES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFCPNX-100-8LFG672C

Mounting Type	Surface Mount
Number of I/O	313
Number of LABs/CLBs	24000 LABs/CLBs
Number of Logic Elements/Cells	96000
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

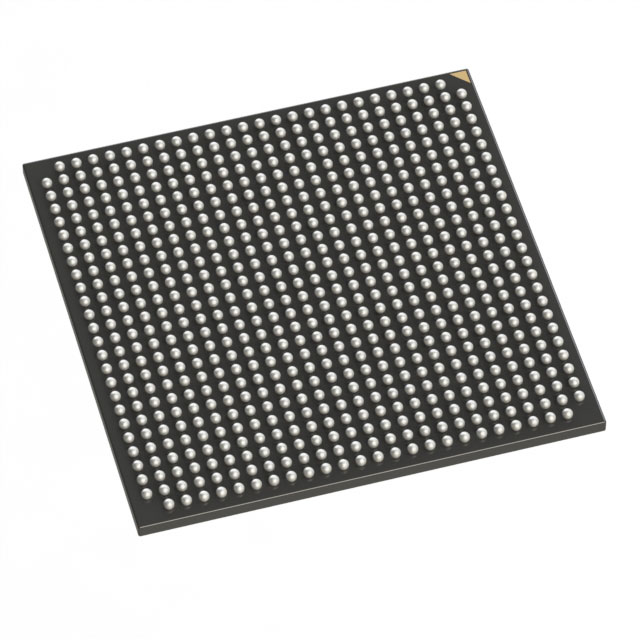

Package / Case	672-BBGA
Supplier Device Package	672-FCBGA (27x27)
Total RAM Bits	3833856
Voltage - Supply [Max]	1.05 V
Voltage - Supply [Min]	0.95 V

LFCPNX-100 Series

Part	Number of LABs/CLBs	Number of Logic Elements/Cells	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Total RAM Bits	Supplier Device Package	Number of I/O
LATTICE SEMICONDUCTOR LFCPNX-100-8BFG484C	24000 LABs/CLBs	96000	Surface Mount	0 °C	85 °C	484-BBGA	1.05 V	0.95 V	3833856	484-FPBGA (23x23)	309
LATTICE SEMICONDUCTOR LFCPNX-100-8BFG484I	24000 LABs/CLBs	96000	Surface Mount	-40 C	100 °C	484-BBGA	1.05 V	0.95 V	3833856	484-FPBGA (23x23)	309
LATTICE SEMICONDUCTOR LFCPNX-100-8CBG256I	24000 LABs/CLBs	96000	Surface Mount	-40 C	100 °C	256-LFBGA	1.05 V	0.95 V	3833856	256-CABGA (14x14)	169
LATTICE SEMICONDUCTOR LFCPNX-100-9BBG484I	24000 LABs/CLBs	96000	Surface Mount	-40 C	100 °C	484-LFBGA	1.05 V	0.95 V	3833856	484-CABGA (19x19)	313
LATTICE SEMICONDUCTOR LFCPNX-100-8LFG672C	24000 LABs/CLBs	96000	Surface Mount	0 °C	85 °C	672-BBGA	1.05 V	0.95 V	3833856	672-FCBGA (27x27)	313
LATTICE SEMICONDUCTOR LFCPNX-100-9BFG484C	24000 LABs/CLBs	96000	Surface Mount	0 °C	85 °C	484-BBGA	1.05 V	0.95 V	3833856	484-FPBGA (23x23)	309
LATTICE SEMICONDUCTOR LFCPNX-100-7CBG256C	24000 LABs/CLBs	96000	Surface Mount	0 °C	85 °C	256-LFBGA	1.05 V	0.95 V	3833856	256-CABGA (14x14)	169
LATTICE SEMICONDUCTOR LFCPNX-100-9ASG256C	24000 LABs/CLBs	96000	Surface Mount	0 °C	85 °C	256-LBGA	1.05 V	0.95 V	3833856	256-SBGA (27x27)	169
LATTICE SEMICONDUCTOR LFCPNX-100-8BBG484C	24000 LABs/CLBs	96000	Surface Mount	0 °C	85 °C	484-LFBGA	1.05 V	0.95 V	3833856	484-CABGA (19x19)	313
LATTICE SEMICONDUCTOR LFCPNX-100-7ASG256I	24000 LABs/CLBs	96000	Surface Mount	-40 C	100 °C	256-LBGA	1.05 V	0.95 V	3833856	256-SBGA (27x27)	169

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 140.60
		25	$ 122.45
Newark	Each	25	$ 125.17
		50	$ 123.36
		100	$ 116.10

Description

General part information

LFCPNX-100 Series

CertusPro™-NX Field Programmable Gate Array (FPGA) IC 313 3833856 96000 672-BBGA
