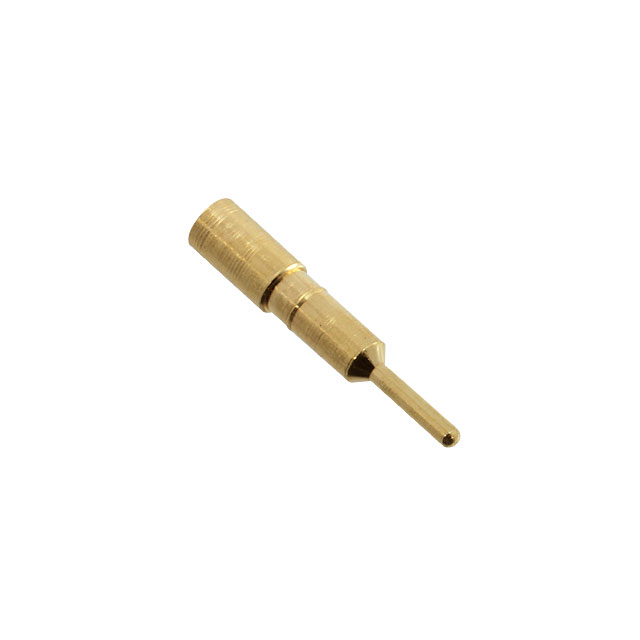

1313-0-15-15-18-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .037-.043 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

1313-0-15-15-18-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .037-.043 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1313-0-15-15-18-27-04-0

Accepts Pin Diameter [Max]	0.043 in
Accepts Pin Diameter [Max]	1.09 mm
Accepts Pin Diameter [Min]	0.037 in
Accepts Pin Diameter [Min]	0.94 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.065 in
Flange Diameter [diameter]	1.65 mm
Length - Overall [x]	0.37 in
Length - Overall [x]	9.4 mm
Mounting Hole Diameter [diameter]	1.42 mm
Mounting Hole Diameter [diameter]	0.056 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.37 mm
Pin Hole Diameter [diameter]	0.054 in
Socket Depth	0.185 in
Socket Depth	4.7 mm
Tail Diameter	0.61 mm
Tail Diameter	0.024 "
Tail Type	Standard Tail
Termination	Press-Fit

1313-0 Series

Part	Length - Overall [x]	Length - Overall [x]	Contact Finish	Termination	Socket Depth	Socket Depth	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Tail Diameter	Tail Diameter	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 1313-0-15-01-18-14-04-0	0.37 in	9.4 mm	Gold	Press-Fit	0.185 in	4.7 mm	-55 °C	125 °C	Beryllium Copper	0.61 mm	0.024 "	1.37 mm	0.054 in	Standard Tail	0.037 in	0.94 mm	0.043 in	1.09 mm	10 Áin	0.25 Ám	0.065 in	1.65 mm	1.42 mm	0.056 in
Mill-Max Manufacturing Corp. 1313-0-15-15-18-27-04-0	0.37 in	9.4 mm	Gold	Press-Fit	0.185 in	4.7 mm	-55 °C	125 °C	Beryllium Copper	0.61 mm	0.024 "	1.37 mm	0.054 in	Standard Tail	0.037 in	0.94 mm	0.043 in	1.09 mm	30 Áin	0.76 Ám	0.065 in	1.65 mm	1.42 mm	0.056 in
Mill-Max Manufacturing Corp. 1313-0-15-15-18-14-04-0	0.37 in	9.4 mm	Gold	Press-Fit	0.185 in	4.7 mm	-55 °C	125 °C	Beryllium Copper	0.61 mm	0.024 "	1.37 mm	0.054 in	Standard Tail	0.037 in	0.94 mm	0.043 in	1.09 mm	10 Áin	0.25 Ám	0.065 in	1.65 mm	1.42 mm	0.056 in
Mill-Max Manufacturing Corp. 1313-0-15-01-18-27-04-0	0.37 in	9.4 mm	Gold	Press-Fit	0.185 in	4.7 mm	-55 °C	125 °C	Beryllium Copper	0.61 mm	0.024 "	1.37 mm	0.054 in	Standard Tail	0.037 in	0.94 mm	0.043 in	1.09 mm	30 Áin	0.76 Ám	0.065 in	1.65 mm	1.42 mm	0.056 in
Mill-Max Manufacturing Corp. 1313-0-15-80-18-80-04-0	0.37 in	9.4 mm	Tin	Press-Fit	0.185 in	4.7 mm	-55 °C	125 °C	Beryllium Copper	0.61 mm	0.024 "	1.37 mm	0.054 in	Standard Tail	0.037 in	0.94 mm	0.043 in	1.09 mm	200 Áin	5.08 Ám	0.065 in	1.65 mm	1.42 mm	0.056 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.57
		10	$ 0.50
		25	$ 0.45
		50	$ 0.43
		100	$ 0.41
		250	$ 0.37
		500	$ 0.36
		1000	$ 0.29
		3000	$ 0.27

Description

General part information

1313-0 Series

Pin Receptacle Connector 0.037" ~ 0.043" (0.94mm ~ 1.09mm) Standard Tail Press-Fit
