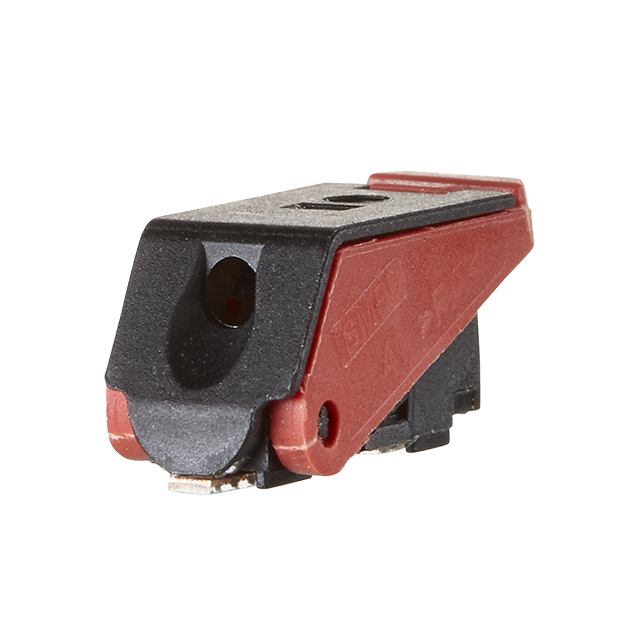

SM99S01VBNN04G7
ActiveMETZ CONNECT USA Inc.
TERM BLOCK 1POS SIDE ENTRY SMD
Deep-Dive with AI
Search across all available documentation for this part.
SM99S01VBNN04G7
ActiveMETZ CONNECT USA Inc.
TERM BLOCK 1POS SIDE ENTRY SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM99S01VBNN04G7 |
|---|---|
| Clamp Material - Plating | Steel |
| Color | Red |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 9 A |
| Features | Push Button Actuated |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Positions Per Level | 1 |
| Voltage | 300 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.26 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 1.26 | ||
| 10 | $ 0.68 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.38 | |||
| Tape & Reel (TR) | 1000 | $ 0.36 | ||
| 2000 | $ 0.35 | |||
| 3000 | $ 0.34 | |||
| 5000 | $ 0.33 | |||
| 7000 | $ 0.33 | |||
| 10000 | $ 0.33 | |||
| 25000 | $ 0.32 | |||
Description
General part information
SM99S01VB Series
1 Position Wire to Board Terminal Block Horizontal with Board Surface Mount
Documents
Technical documentation and resources
No documents available
