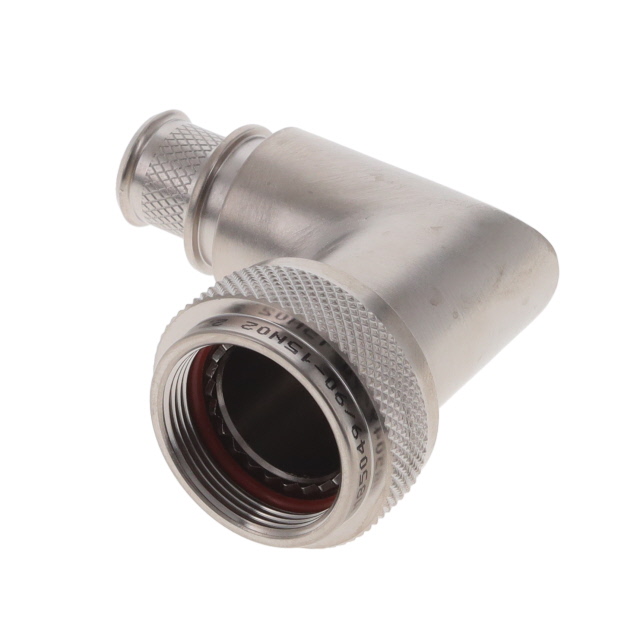

M85049/90-15N02

Active

Amphenol Interconnect India

CONN BACKSH BANDING SZ15 D SIL

Deep-Dive with AI

Search across all available documentation for this part.

M85049/90-15N02

Active

Amphenol Interconnect India

CONN BACKSH BANDING SZ15 D SIL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/90-15N02

Cable Exit	90 °
Cable Opening [diameter]	11.43 mm
Cable Opening [diameter]	0.45 in
Color	Silver
Diameter - Outside [diameter]	1.281 in
Diameter - Outside [diameter]	32.54 mm
Features	Self Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Electroless Nickel
Shell Size - Insert	15
Shell Size - Insert	D
Shielding	Unshielded
Type	Banding, Backshell

M85049/90 Series

Part	Plating	Shielding	Color	For Use With/Related Products	Type	Features	Shell Size - Insert	Cable Exit	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert [custom]	Shell Size - Insert [custom]	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol Interconnect India M85049/90-17Z02	Zinc Cobalt	Unshielded	Black	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	17 E	90 °	Aluminum Alloy	1.41 in	35.81 mm	12.95 mm	0.51 in
Amphenol Interconnect India M85049/90-9W03	Cadmium	Unshielded	Olive Drab	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking		90 °	Aluminum Alloy	0.859 in	21.82 mm	6.6 mm	0.26 in	9	A
Amphenol Interconnect India M85049/90-13W02	Cadmium	Unshielded	Olive Drab	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	C	90 °	Aluminum Alloy	1.156 in	29.36 mm	8.13 mm	0.32 in			13
Amphenol Interconnect India M85049/90-11W03	Cadmium	Unshielded	Olive Drab	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	B	90 °	Aluminum Alloy	0.986 in	25.04 mm	8.13 mm	0.32 in			11
Amphenol Interconnect India M85049/90-15N02	Electroless Nickel	Unshielded	Silver	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	D	90 °	Aluminum Alloy	1.281 in	32.54 mm					15	11.43 mm	0.45 in
Amphenol Interconnect India M85049/90-9N03	Electroless Nickel	Unshielded	Silver	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking		90 °	Aluminum Alloy	0.859 in	21.82 mm	6.6 mm	0.26 in	9	A
Amphenol Interconnect India M85049/90-9Z03	Zinc Cobalt	Unshielded	Black	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking		90 °	Aluminum Alloy	0.86 in	21.84 mm	6.6 mm	0.26 in	9	A
Amphenol Interconnect India M85049/90-13Z03	Zinc Cobalt	Unshielded	Black	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	C	90 °	Aluminum Alloy	1.16 in	29.46 mm					13	11.43 mm	0.45 in
Amphenol Interconnect India M85049/90-25Z03	Zinc Cobalt	Unshielded	Black	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	J	90 °	Aluminum Alloy	1.89 "	48.01 mm	25.65 mm	1.01 in			25
Amphenol Interconnect India M85049/90-25Z02	Zinc Cobalt	Unshielded	Black	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	J	90 °	Aluminum Alloy	1.89 "	48.01 mm					25	19.3 mm	0.76 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 692.69
		1	$ 58.70
		25	$ 51.80
		100	$ 47.31

Description

General part information

M85049/90 Series

Silver Connector Backshell, Banding 15, D

Documents

Technical documentation and resources

No documents available
