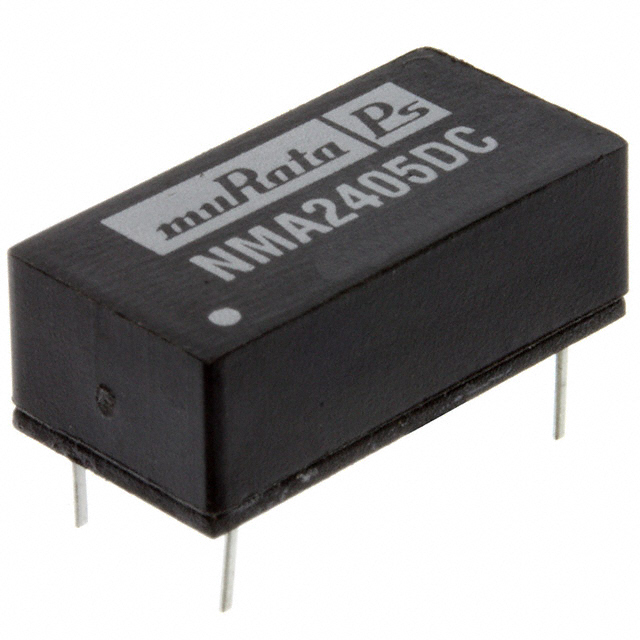

NMA2405DC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-5V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-5V 1W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 21.6V - 26.4V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	NMA2405DC	NMA24 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	100 mA	100 mA
Current - Output (Max)	100 mA	33 - 100 mA
Current - Output (Max)	-	42 mA
Current - Output (Max)	-	42 mA
Efficiency	70 %	70 - 80 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 6 Leads	7-SIP Module, 5 Leads, 14-DIP Module, 6 Leads
Size / Dimension	-	9.9 mm
Size / Dimension	-	6.1 mm
Size / Dimension	-	19.6 mm
Size / Dimension [x]	0.77 in, 19.6 mm	0.77 - 19.6 in
Size / Dimension [y]	0.39 ", 9.9 mm	0.24 - 9.9 "
Size / Dimension [z]	0.27 ", 6.9 mm	0.27 - 6.9 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	26.4 V	26.4 V
Voltage - Input (Min) [Min]	21.6 V	21.6 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	5 V	5 - 15 V
Voltage - Output 2	-5 V	-15 - -5 V

DC DC CONVERTER +/-15V 1W

Part	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Output 2	Applications	Mounting Type	Package / Case	Type	Current - Output (Max)	Voltage - Output 1	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. NMA2415SC	80 %	85 °C	-40 °C	2	21.6 V	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	1000 V	26.4 V	-15 V	ITE (Commercial)	Through Hole	7-SIP Module, 5 Leads	Isolated Module	33 mA	15 V
Murata Power Solutions Inc. NMA2405DC	70 %	85 °C	-40 °C	2	21.6 V	0.27 ", 6.9 mm	0.77 in, 19.6 mm				0.39 ", 9.9 mm	1000 V	26.4 V	-5 V	ITE (Commercial)	Through Hole	14-DIP Module, 6 Leads	Isolated Module	100 mA	5 V	100 mA
Murata Power Solutions Inc. NMA2409SC	77 %	85 °C	-40 °C	2	21.6 V	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	1000 V	26.4 V	-9 V	ITE (Commercial)	Through Hole	7-SIP Module, 5 Leads	Isolated Module	55 mA	9 V
Murata Power Solutions Inc. NMA2405SC	70 %	85 °C	-40 °C	2	21.6 V	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	1000 V	26.4 V	-5 V	ITE (Commercial)	Through Hole	7-SIP Module, 5 Leads	Isolated Module	100 mA	5 V	100 mA
Murata Power Solutions Inc. NMA2412SC	80 %	85 °C	-40 °C	2	21.6 V	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	1000 V	26.4 V	-12 V	ITE (Commercial)	Through Hole	7-SIP Module, 5 Leads	Isolated Module		12 V		42 mA	42 mA
