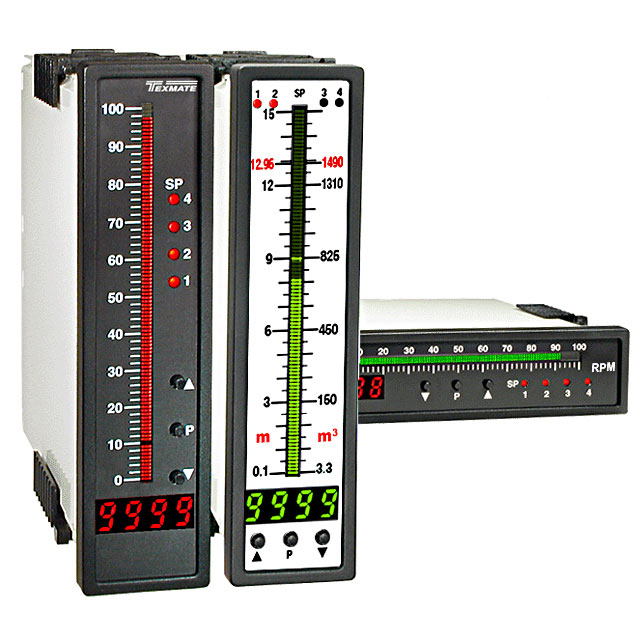

FL-BDPSF-ACA

Active

Texmate

AC AMP 101 SEG 4 DIGITS LED BARG

Search across all available documentation for this part.

Active

Texmate

AC AMP 101 SEG 4 DIGITS LED BARG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FL-BDPSF-ACA	FL-BDPSF Series

Display Characters - Height [z]	7.87 mm	7.87 mm
Display Characters - Height [z]	0.31 in	0.31 in
Display Type	LED - Red Characters, LED - Red Bar Graph	LED - Red Characters, LED - Red Bar Graph
Measuring Range [Max]	5 A	0.2 - 600 A
Measuring Range [Min]	0 A	0 - 200 A
Measuring Type	Current	Current, Voltage, Process
Number of Characters Per Row	4	4
Output Type	Relay (2), Analog	Relay (2), Analog
Panel Cutout Dimensions [x]	144.53 mm	144.53 mm
Panel Cutout Dimensions [y]	36.07 mm	36.07 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Ammeter	Ammeter, Voltmeter, Process Meter
Voltage - Supply [Max]	265 VAC, 300 VDC	265 - 300 VAC
Voltage - Supply [Min]	95 VDC, 85 VAC	85 - 95 VDC

AC AMP 101 SEG 4 DIGITS LED BARG

Part	Number of Characters Per Row	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Type	Output Type	Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Measuring Range [Max]	Measuring Range [Min]	Display Type
Texmate FL-BDPSF-ACA	4	Screw Terminal	85 VAC, 95 VDC	265 VAC, 300 VDC	7.87 mm	0.31 in	Current	Analog, Relay (2)	Ammeter	36.07 mm	144.53 mm	5 A	0 A	LED - Red Bar Graph, LED - Red Characters
Texmate FL-BDPSF-ACV	4	Screw Terminal	85 VAC, 95 VDC	265 VAC, 300 VDC	7.87 mm	0.31 in	Voltage	Analog, Relay (2)	Voltmeter	36.07 mm	144.53 mm	600 VAC	200 VAC	LED - Red Bar Graph, LED - Red Characters
Texmate FL-BDPSF-DCV	4	Screw Terminal	85 VAC, 95 VDC	265 VAC, 300 VDC	7.87 mm	0.31 in	Process	Analog, Relay (2)	Process Meter	36.07 mm	144.53 mm	200 V	2 VDC	LED - Red Bar Graph, LED - Red Characters
Texmate FL-BDPSF-4-20MA	4	Screw Terminal	85 VAC, 95 VDC	265 VAC, 300 VDC	7.87 mm	0.31 in	Process	Analog, Relay (2)	Process Meter	36.07 mm	144.53 mm			LED - Red Bar Graph, LED - Red Characters
Texmate FL-BDPSF-DCA	4	Screw Terminal	85 VAC, 95 VDC	265 VAC, 300 VDC	7.87 mm	0.31 in	Current	Analog, Relay (2)	Ammeter	36.07 mm	144.53 mm	0.2 VDC	0.02 VDC	LED - Red Bar Graph, LED - Red Characters
Texmate FL-BDPSF-PROCESSV	4	Screw Terminal	85 VAC, 95 VDC	265 VAC, 300 VDC	7.87 mm	0.31 in	Process	Analog, Relay (2)	Process Meter	36.07 mm	144.53 mm	10 V, 20 mA	0 V, 4 mA	LED - Red Bar Graph, LED - Red Characters

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 726.00

General part information

Ammeter LED - Red Characters, LED - Red Bar Graph Display Panel Mount
