Q-2X01R000R108I

Active

Amphenol Custom Cable

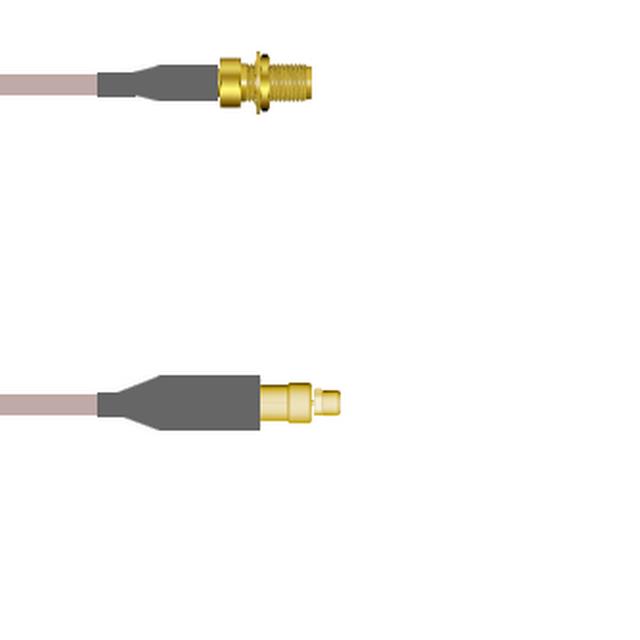

CBL ASSY SMA-MMCX JACK-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2X01R000R108I

Active

Amphenol Custom Cable

CBL ASSY SMA-MMCX JACK-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2X01R000R108I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to MMCX

Q-2X01R0 Series

Part	Connector Impedance	1st Connector	2nd Contact Gender	1st Connector Mounting Feature	Cable Impedance	Frequency - Max [Max]	Cable Type	Features	Style	1st Connector Mounting Type	Length	Length	1st Contact Gender	Overall Impedance	2nd Connector Mounting Type	Color	2nd Connector	Length
Amphenol Custom Cable Q-2X01R000R009I	50 Ohms	SMA Jack	Male	Bulkhead - Front Side Nut	50 Ohms	3 GHz	RG-316 DS	Shielded	SMA to MMCX	Panel Mount	9 "	228.6 mm	Female	50 Ohms	Free Hanging (In-Line)	Copper	MMCX Plug
Amphenol Custom Cable Q-2X01R000R084I	50 Ohms	SMA Jack	Male	Bulkhead - Front Side Nut	50 Ohms	3 GHz	RG-316 DS	Shielded	SMA to MMCX	Panel Mount	84 in	2.1 m	Female	50 Ohms	Free Hanging (In-Line)	Copper	MMCX Plug	7 ft
Amphenol Custom Cable Q-2X01R000R060I	50 Ohms	SMA Jack	Male	Bulkhead - Front Side Nut	50 Ohms	3 GHz	RG-316 DS	Shielded	SMA to MMCX	Panel Mount	5 '	1.5 m	Female	50 Ohms	Free Hanging (In-Line)	Copper	MMCX Plug	5 ft
Amphenol Custom Cable Q-2X01R000R001M	50 Ohms	SMA Jack	Male	Bulkhead - Front Side Nut	50 Ohms	3 GHz	RG-316 DS	Shielded	SMA to MMCX	Panel Mount	39.4 in	1 m	Female	50 Ohms	Free Hanging (In-Line)	Copper	MMCX Plug	3.3 ft
Amphenol Custom Cable Q-2X01R000R2.5M	50 Ohms	SMA Jack	Male	Bulkhead - Front Side Nut	50 Ohms	3 GHz	RG-316 DS	Shielded	SMA to MMCX	Panel Mount	98.4 in	2.5 m	Female	50 Ohms	Free Hanging (In-Line)	Copper	MMCX Plug	8.2 '
Amphenol Custom Cable Q-2X01R000R108I	50 Ohms	SMA Jack	Male	Bulkhead - Front Side Nut	50 Ohms	3 GHz	RG-316 DS	Shielded	SMA to MMCX	Panel Mount	108 in	2.7 m	Female	50 Ohms	Free Hanging (In-Line)	Copper	MMCX Plug	9 ft
Amphenol Custom Cable Q-2X01R000R1.5M	50 Ohms	SMA Jack	Male	Bulkhead - Front Side Nut	50 Ohms	3 GHz	RG-316 DS	Shielded	SMA to MMCX	Panel Mount	59.1 in	1.5 m	Female	50 Ohms	Free Hanging (In-Line)	Copper	MMCX Plug	4.9 ft
Amphenol Custom Cable Q-2X01R000R.75M	50 Ohms	SMA Jack	Male	Bulkhead - Front Side Nut	50 Ohms	3 GHz	RG-316 DS	Shielded	SMA to MMCX	Panel Mount	29.53 "	750 mm	Female	50 Ohms	Free Hanging (In-Line)	Copper	MMCX Plug
Amphenol Custom Cable Q-2X01R000R048I	50 Ohms	SMA Jack	Male	Bulkhead - Front Side Nut	50 Ohms	3 GHz	RG-316 DS	Shielded	SMA to MMCX	Panel Mount	48 in	1200 mm	Female	50 Ohms	Free Hanging (In-Line)	Copper	MMCX Plug	4 ft
Amphenol Custom Cable Q-2X01R000R072I	50 Ohms	SMA Jack	Male	Bulkhead - Front Side Nut	50 Ohms	3 GHz	RG-316 DS	Shielded	SMA to MMCX	Panel Mount	72 in	1.8 m	Female	50 Ohms	Free Hanging (In-Line)	Copper	MMCX Plug	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 347.55
		25	$ 341.28
		50	$ 335.01
		100	$ 328.73
		250	$ 322.46

Description

General part information

Q-2X01R0 Series

Cable Assembly Coaxial SMA to MMCX RG-316 DS 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
