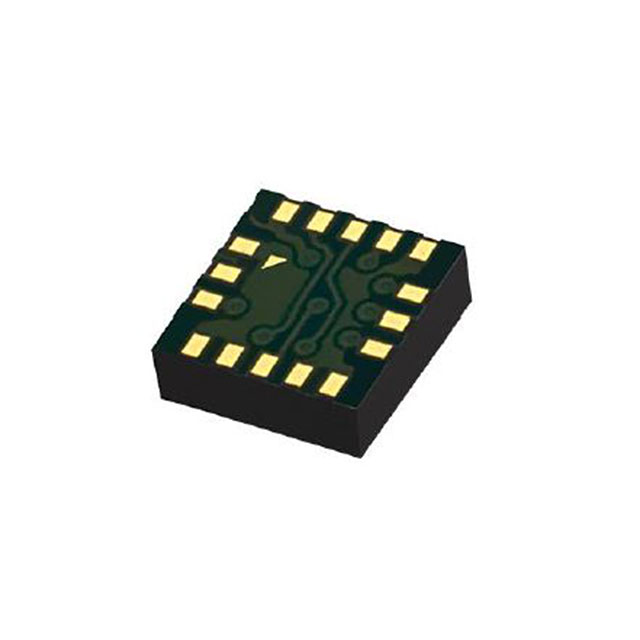

KX124-1051

Obsolete

Kionix Inc.

ACCELEROMETER 2-8G I2C/SPI 16LGA

Search across all available documentation for this part.

Obsolete

Kionix Inc.

ACCELEROMETER 2-8G I2C/SPI 16LGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±2g, 4g, 8g 800Hz 16-LGA (3x3)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	KX124-1051	KX124 Series

Acceleration Range	4 g, 8 g	4 - 8 g
Acceleration Range [Max]	2 g	2 g
Acceleration Range [Min]	-2 g	-2 g
Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Bandwidth	800 Hz	800 Hz
Features	Selectable Low Pass Filter, Adjustable Bandwidth	Selectable Low Pass Filter, Adjustable Bandwidth
Interface	-	Serial, I2C, SPI
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, SPI	I2C, SPI
Package / Case	16-VFLGA	16-VFLGA
Sensing Range	-	2 - 8 g
Sensitivity (LSB/g)	64 LSB/g, 16 LSB/g	16 - 64 LSB/g
Sensor Type	-	Accelerometer, 3 Axis
Supplied Contents	-	Board(s)
Supplier Device Package	16-LGA (3x3)	16-LGA (3x3)
Type	Digital	Digital
Utilized IC / Part	-	KX124-1051
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.71 V	1.71 V

EVAL BOARD FOR KX124-1051

Part	Sensor Type	Supplied Contents	Utilized IC / Part	Sensing Range	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Axis [z]	Axis [y]	Axis [x]	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Bandwidth	Supplier Device Package	Features	Type	Output Type	Mounting Type	Sensitivity (LSB/g)	Operating Temperature [Max]	Operating Temperature [Min]
Kionix Inc. KX124-1051-EVB0B0	Accelerometer, 3 Axis	Board(s)	KX124-1051	2 g, 4 g, 8 g	I2C, Serial, SPI	3.6 V	1.71 V
Kionix Inc. KX124-1051						3.6 V	1.71 V	16-VFLGA	Z	Y	X	4 g, 8 g	-2 g	2 g	800 Hz	16-LGA (3x3)	Adjustable Bandwidth, Selectable Low Pass Filter	Digital	I2C, SPI	Surface Mount	16 LSB/g, 64 LSB/g	85 °C	-40 °C
