87160-1

Active

TE Connectivity AMP Connectors

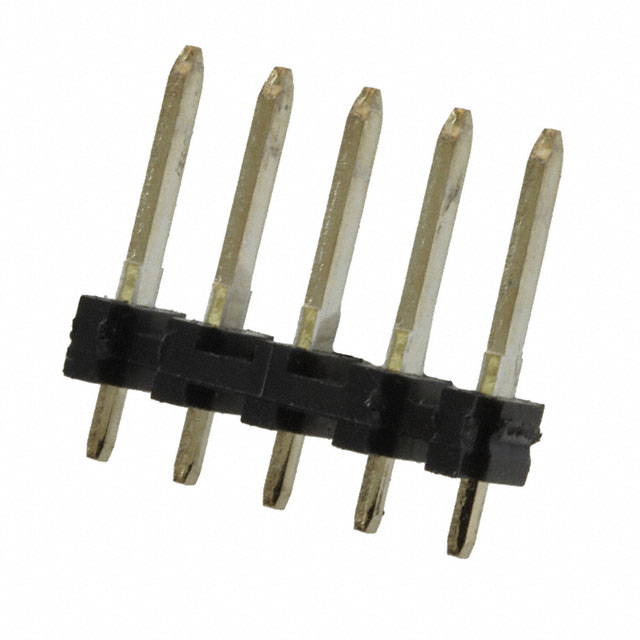

CONN HEADER VERT 5POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

87160-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 5POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1250	$ 1.52

Description

General part information

87160 Series

Connector Header Through Hole 5 position 0.156" (3.96mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87160-1	87160 Series

Connector Type	Header	Header
Contact Finish - Mating	Tin-Lead	Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	0.405 in	0.405 in
Contact Length - Mating	10.29 mm	10.29 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Brass	Brass
Contact Shape	Rectangular	Rectangular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.125 in	0.125 in
Insulation Height	3.18 mm	3.18 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	2 - 20
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.655 in	0.655 in
Overall Contact Length	16.64 mm	16.64 mm
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87160 Series

CONN HEADER VERT 6POS 3.96MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Style	Pitch - Mating	Pitch - Mating	Number of Positions	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Material Flammability Rating	Number of Positions Loaded	Number of Rows	Contact Material	Contact Finish - Post	Insulation Color	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Shape	Contact Type	Contact Finish - Mating	Current Rating (Amps)	Insulation Material
TE Connectivity AMP Connectors 87160-7	2.54 µm	100 µin	2.54 çm	100 çin	Solder	0.405 in	10.29 mm	0.125 in	3.18 mm	Board to Board, Cable	0.156 in	3.96 mm	6	Unshrouded	-65 ░C	105 ░C	Through Hole	Header	UL94 V-0	All	1	Brass	Tin-Lead	Black	Push-Pull	3.18 mm	0.125 in	0.655 in	16.64 mm	Rectangular	Male Pin	Tin-Lead	5 A	Thermoplastic
TE Connectivity AMP Connectors 5-87160-5	2.54 µm	100 µin	2.54 çm	100 çin	Solder	0.405 in	10.29 mm	0.125 in	3.18 mm	Board to Board, Cable	0.156 in	3.96 mm		Unshrouded	-65 ░C	105 ░C	Through Hole	Header	UL94 V-0	All	1	Brass	Tin	Black	Push-Pull	3.18 mm	0.125 in	0.655 in	16.64 mm	Rectangular	Male Pin		5 A	Thermoplastic
TE Connectivity AMP Connectors 2-87160-0	2.54 µm	100 µin	2.54 çm	100 çin	Solder	0.405 in	10.29 mm	0.125 in	3.18 mm	Board to Board, Cable	0.156 in	3.96 mm	20	Unshrouded	-65 ░C	105 ░C	Through Hole	Header	UL94 V-0	All	1	Brass	Tin-Lead	Black	Push-Pull	3.18 mm	0.125 in	0.655 in	16.64 mm	Rectangular	Male Pin	Tin-Lead	5 A	Thermoplastic
TE Connectivity AMP Connectors 87160-2	2.54 µm	100 µin	2.54 çm	100 çin	Solder	0.405 in	10.29 mm	0.125 in	3.18 mm	Board to Board, Cable	0.156 in	3.96 mm	13	Unshrouded	-65 ░C	105 ░C	Through Hole	Header	UL94 V-0	All	1	Brass	Tin-Lead	Black	Push-Pull	3.18 mm	0.125 in	0.655 in	16.64 mm	Rectangular	Male Pin	Tin-Lead	5 A	Thermoplastic
TE Connectivity AMP Connectors 87160-1	2.54 µm	100 µin	2.54 çm	100 çin	Solder	0.405 in	10.29 mm	0.125 in	3.18 mm	Board to Board, Cable	0.156 in	3.96 mm		Unshrouded	-65 ░C	105 ░C	Through Hole	Header	UL94 V-0	All	1	Brass	Tin-Lead	Black	Push-Pull	3.18 mm	0.125 in	0.655 in	16.64 mm	Rectangular	Male Pin	Tin-Lead	5 A	Thermoplastic
TE Connectivity AMP Connectors 87160-9	2.54 µm	100 µin	2.54 çm	100 çin	Solder	0.405 in	10.29 mm	0.125 in	3.18 mm	Board to Board, Cable	0.156 in	3.96 mm	8	Unshrouded	-65 ░C	105 ░C	Through Hole	Header	UL94 V-0	All	1	Brass	Tin-Lead	Black	Push-Pull	3.18 mm	0.125 in	0.655 in	16.64 mm	Rectangular	Male Pin	Tin-Lead	5 A	Thermoplastic
TE Connectivity AMP Connectors 6-87160-1	2.54 µm	100 µin	2.54 çm	100 çin	Solder	0.405 in	10.29 mm	0.125 in	3.18 mm	Board to Board, Cable	0.156 in	3.96 mm	10	Unshrouded	-65 ░C	105 ░C	Through Hole	Header	UL94 V-0	All	1	Brass	Tin	Black	Push-Pull	3.18 mm	0.125 in	0.655 in	16.64 mm	Rectangular	Male Pin		5 A	Thermoplastic
TE Connectivity AMP Connectors 1-87160-1	2.54 µm	100 µin	2.54 çm	100 çin	Solder	0.405 in	10.29 mm	0.125 in	3.18 mm	Board to Board, Cable	0.156 in	3.96 mm	10	Unshrouded	-65 ░C	105 ░C	Through Hole	Header	UL94 V-0	All	1	Brass	Tin-Lead	Black	Push-Pull	3.18 mm	0.125 in	0.655 in	16.64 mm	Rectangular	Male Pin	Tin-Lead	5 A	Thermoplastic
TE Connectivity AMP Connectors 5-87160-4	2.54 µm	100 µin	2.54 çm	100 çin	Solder	0.405 in	10.29 mm	0.125 in	3.18 mm	Board to Board, Cable	0.156 in	3.96 mm	2	Unshrouded	-65 ░C	105 ░C	Through Hole	Header	UL94 V-0	All	1	Brass	Tin	Black	Push-Pull	3.18 mm	0.125 in	0.655 in	16.64 mm	Rectangular	Male Pin		5 A	Thermoplastic
TE Connectivity AMP Connectors 1-87160-5	2.54 µm	100 µin	2.54 çm	100 çin	Solder	0.405 in	10.29 mm	0.125 in	3.18 mm	Board to Board, Cable	0.156 in	3.96 mm	15	Unshrouded	-65 ░C	105 ░C	Through Hole	Header	UL94 V-0	All	1	Brass	Tin-Lead	Black	Push-Pull	3.18 mm	0.125 in	0.655 in	16.64 mm	Rectangular	Male Pin	Tin-Lead	5 A	Thermoplastic
