MDBA26PE860

Obsolete

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 26POS PNL MNT

Search across all available documentation for this part.

Obsolete

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 26POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	MDBA26PE860

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Zinc
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder
Voltage Rating	125 VDC

Part	Number of Rows	Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Dielectric Material	Contact Type	Ingress Protection	Flange Feature	Contact Finish	Termination	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Material	Mounting Type	Shell Material, Finish
Amphenol ICC (Commercial Products) MDBA26PE860	3	Black	3 A	-40 °C	105 ░C	26	Male Pins Plug	Polyester	Signal	IP67 - Dust Tight Waterproof	4-40 Board Side	Gold	Solder	UL94 V-0	0.76 Ám	30 Áin	125 VDC	D-Sub High Density	2	(DA A) High Density	Copper Alloy	Panel Mount Through Hole	Nickel Plated Zinc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

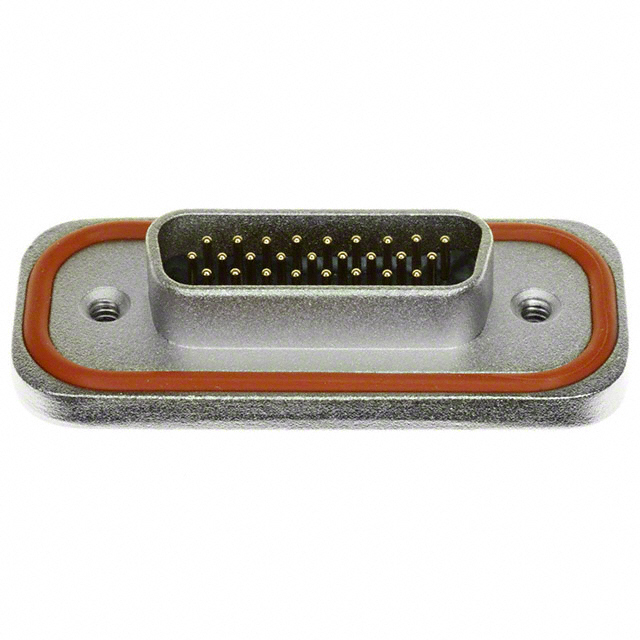

26 Position D-Sub, High Density Plug, Male Pins Connector
