T4111001031-000
ActiveTE Connectivity AMP Connectors

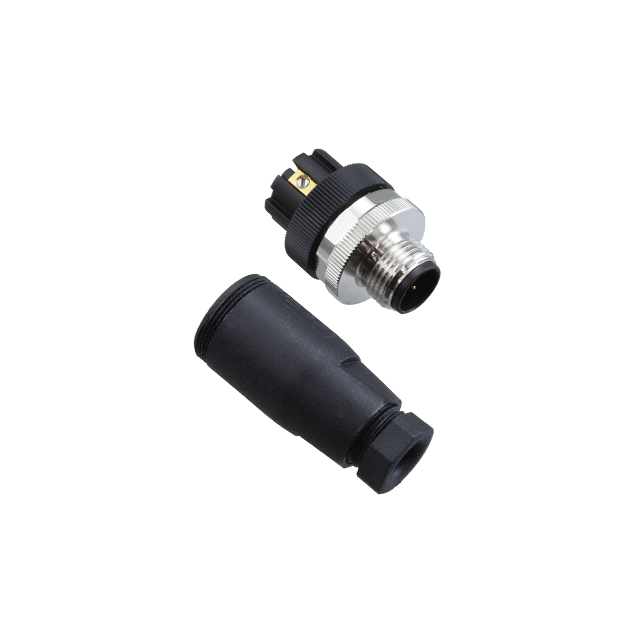

CONN RCPT MALE 3POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
T4111001031-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 3POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4111001031-000 | T41110 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Backshell Material, Plating | Glass Filled, Polybutylene Terephthalate (PBT) | Glass Filled, Polybutylene Terephthalate (PBT), Nickel, Brass |
| Cable Opening | - | 8 mm |
| Cable Opening | - | 6 mm |
| Cable Opening | - | 0.315 in |
| Cable Opening | - | 0.236 in |
| Cable Opening [diameter] | 6 mm, 4 mm | 4 - 6 mm |
| Cable Opening [diameter] | 0.236 in, 0.157 in | 0.157 - 0.236 in |
| Color | Black, Silver | Black, Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold, Silver |
| Contact Finish Thickness - Mating | 3 µin | 3 - 80 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 - 2.03 µm |
| Contact Material | Zinc Alloy | Zinc Alloy, Brass |
| Current Rating (Amps) | 4 A | 2 - 4 A |
| Features | Backshell | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 2 - 8 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | M12-3 | M12-5, M12-4, M12-3, M12-2, M12-8 |
| Shielding | Unshielded | Unshielded, Shielded |
| Termination | Screw | Screw |
| Voltage Rating | 250 VDC | 30 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.57 | |
| 10 | $ 5.45 | |||
| 25 | $ 5.05 | |||
| 50 | $ 4.78 | |||
| 100 | $ 4.51 | |||
| 250 | $ 4.19 | |||
| 500 | $ 3.96 | |||
| 1000 | $ 3.75 | |||
| 2500 | $ 3.51 | |||
T41110 Series
CONN RCPT MALE 5POS GOLD SCREW
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert | Voltage Rating | Ingress Protection | Insert Material | Backshell Material, Plating | Primary Material | Shielding | Termination | Applications | Shell Finish | Contact Finish - Mating | Connector Type | Color | Orientation | Features | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Current Rating (Amps) | Mounting Type | Contact Material | Shell Material | Number of Positions | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4111002051-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-5 | 60 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Black, Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | |||
TE Connectivity AMP Connectors T4111002042-000 | 85 °C | -40 °C | 80 µin | 2.03 µm | M12-4 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Silver | Male Pins, Receptacle | Black, Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 A | Free Hanging (In-Line) | Brass | Brass | 4 | ||
TE Connectivity AMP Connectors T4111001031-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-3 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Black, Silver | A | Backshell | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4111002022-000 | 85 °C | -40 °C | 80 µin | 2.03 µm | M12-2 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Silver | Male Pins, Receptacle | Black, Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 A | Free Hanging (In-Line) | Brass | Brass | 2 | ||
TE Connectivity AMP Connectors T4111002031-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-3 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Black, Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | |||
TE Connectivity AMP Connectors T4111011041-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-4 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Brass, Nickel | Metal | Shielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Silver | A | Backshell | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 4 | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4111012051-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-5 | 60 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Brass, Nickel | Metal | Shielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | |||
TE Connectivity AMP Connectors T4111012031-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-3 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Brass, Nickel | Metal | Shielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | |||
TE Connectivity AMP Connectors T4111011081-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-8 | 30 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Brass, Nickel | Metal | Shielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Silver | A | Backshell | 2 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 8 | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4111002041-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-4 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Black, Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 4 | ||
TE Connectivity AMP Connectors T4111011021-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-2 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Brass, Nickel | Metal | Shielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Silver | A | Backshell | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 2 | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4111012081-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-8 | 30 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Brass, Nickel | Metal | Shielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 2 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 8 | ||
TE Connectivity AMP Connectors T4111001041-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-4 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Black, Silver | A | Backshell | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 4 | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4111002021-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-2 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Black, Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 2 | ||
TE Connectivity AMP Connectors T4111001042-000 | 85 °C | -40 °C | 80 µin | 2.03 µm | M12-4 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Silver | Male Pins, Receptacle | Black, Silver | A | Backshell | 4 A | Free Hanging (In-Line) | Brass | Brass | 4 | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4111012021-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-2 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Brass, Nickel | Metal | Shielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 2 | ||
TE Connectivity AMP Connectors T4111001051-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-5 | 60 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Black, Silver | A | Backshell | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4111002081-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-8 | 30 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Black, Silver | A | Backshell | 8 mm | 6 mm | 0.315 in | 0.236 in | 2 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 8 | ||
TE Connectivity AMP Connectors T4111001021-000 | 85 °C | -40 °C | 3 µin | 0.076 µm | M12-2 | 250 VDC | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | Glass Filled, Polybutylene Terephthalate (PBT) | Metal | Unshielded | Screw | Industrial | Nickel | Gold | Male Pins, Receptacle | Black, Silver | A | Backshell | 4 A | Free Hanging (In-Line) | Zinc Alloy | Brass | 2 | 4 mm, 6 mm | 0.157 in, 0.236 in |
Description
General part information
T41110 Series
3 Position Circular Connector Receptacle, Male Pins Screw
