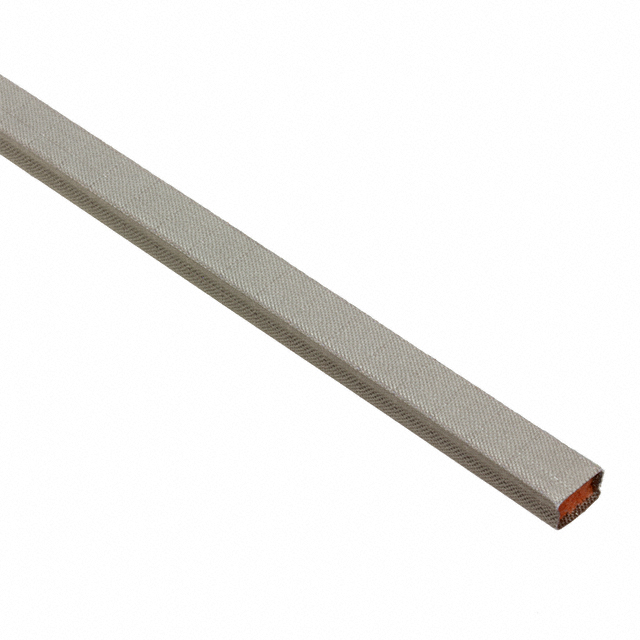

37-131-1018-02400

Active

Parker Chomerics

RFI FOF GASKET NI/CU NICKEL ADH

Search across all available documentation for this part.

Active

Parker Chomerics

RFI FOF GASKET NI/CU NICKEL ADH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RFI FOF GASKET NI/CU NICKEL ADH

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	37-131-1018-02400	37-131 Series

Attachment Method	Adhesive	Adhesive
Height [z]	0.105 in	0.075 - 0.2 in
Height [z]	2.67 mm	1.91 - 5.08 mm
Length [x]	24 in	24 in
Length [x]	609.6 mm	609.6 mm
Material	Nickel-Copper Polyester (NI/CU)	Nickel-Copper Polyester (NI/CU)
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Plating	Nickel	Nickel
Shape	Rectangle	Rectangle
Shelf Life	12 Months	12 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Storage/Refrigeration Temperature	70 °F	70 °F
Storage/Refrigeration Temperature	21 °C	21 °C
Type	Fabric Over Foam	Fabric Over Foam
Width	-	2.99 - 3.48 mm
Width	-	0.118 - 0.137 in
Width [y]	0.197 in	0.197 - 0.394 in
Width [y]	5 mm	5 - 10 mm

RFI FOF GASKET NI/CU NICKEL ADH

Part	Plating	Attachment Method	Type	Material	Width [y]	Width [y]	Shelf Life	Shape	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Height [z]	Height [z]	Shelf Life Start	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Width [x]	Width [x]
Parker Chomerics 37-131-1013-02400	Nickel	Adhesive	Fabric Over Foam	Nickel-Copper Polyester (NI/CU)	0.394 in	10 mm	12 Months	Rectangle	70 °F	21 °C	1.91 mm	0.075 in	Date of Shipment	24 in	609.6 mm	125 °C	-40 °C
Parker Chomerics 37-131-1018-02400	Nickel	Adhesive	Fabric Over Foam	Nickel-Copper Polyester (NI/CU)	0.197 in	5 mm	12 Months	Rectangle	70 °F	21 °C	2.67 mm	0.105 in	Date of Shipment	24 in	609.6 mm	125 °C	-40 °C
Parker Chomerics 37-131-1022-02400	Nickel	Adhesive	Fabric Over Foam	Nickel-Copper Polyester (NI/CU)	0.394 in	10 mm	12 Months	Rectangle	70 °F	21 °C	2.67 mm	0.105 in	Date of Shipment	24 in	609.6 mm	125 °C	-40 °C
Parker Chomerics 37-131-1030-02400	Nickel	Adhesive	Fabric Over Foam	Nickel-Copper Polyester (NI/CU)			12 Months	Rectangle	70 °F	21 °C	5.08 mm	0.2 in	Date of Shipment	24 in	609.6 mm	125 °C	-40 °C	3.48 mm	0.137 in
Parker Chomerics 37-131-1011-02400	Nickel	Adhesive	Fabric Over Foam	Nickel-Copper Polyester (NI/CU)	0.197 in	5 mm	12 Months	Rectangle	70 °F	21 °C	1.91 mm	0.075 in	Date of Shipment	24 in	609.6 mm	125 °C	-40 °C
Parker Chomerics 37-131-1008-02400	Nickel	Adhesive	Fabric Over Foam	Nickel-Copper Polyester (NI/CU)			12 Months	Rectangle	70 °F	21 °C	1.91 mm	0.075 in	Date of Shipment	24 in	609.6 mm	125 °C	-40 °C	2.99 mm	0.118 "
