TO263-5EV-VREG
ActiveEVALUATION BOARD, VOLTAGE REGULATOR, ADJUSTABLE OUTPUT VOLTAGE, POWER GOOD OUTPUT
TO263-5EV-VREG
ActiveEVALUATION BOARD, VOLTAGE REGULATOR, ADJUSTABLE OUTPUT VOLTAGE, POWER GOOD OUTPUT
Description
General part information
TO263-5 Series

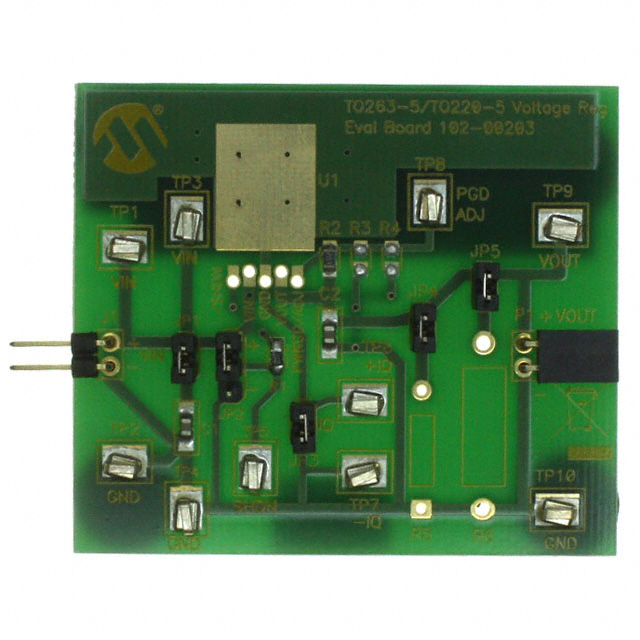

The TO263-5EV-VREG is a evaluation board designed to provide functional evaluation of voltage regulators that utilize the TO263-5 package. The TO263-5 Voltage regulator evaluation board does not come with a voltage regulator soldered onto the board. This allows the user to attach the voltage regulator of their choosing to the board and perform quiescent current, ground current, PSRR, and other desired tests. The TO263-5 voltage regulator evaluation board is based upon a modular concept which will allow the user to plug in additional boards to increase the test capability of the voltage regulator. Planned additional modular plug-in boards currently consist of an Input Voltage Linestep Board, Output Voltage Loadstep Board, and several other device packages.
Technical Specifications
Parameters and characteristics for this part
| Specification | TO263-5EV-VREG |
|---|---|
| Board Type | Partially Populated |
| Channels per IC (Count) | 1 |
| Channels per IC (Single) | 1 |
| Channels per IC (Type) | Single |
| Contents | Partially Populated Board |
| Regulator Type | Adjustable, Positive Fixed |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TO-263-5 (D²Pak-5) Packages, TO-220-5, TO-263-5 (D²Pak-5), TO-263-5 |
