MEZDPD3603AS-84F4

Active

Monolithic Power Systems Inc.

DC DC CONVERTER 3.3V

MEZDPD3603AS-84F4

Active

Monolithic Power Systems Inc.

DC DC CONVERTER 3.3V

Description Specifications Series Pricing CAD Documents

Description

General part information

MEZDPD3603 Series

Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 1A 9V - 15V Input

Technical Specifications

Parameters and characteristics for this part

Specification	MEZDPD3603AS-84F4

Applications	ITE (Commercial)
Current - Output (Max)	1 A
Efficiency	93.2 %
Features	OCP, SCP, OTP, OVP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C

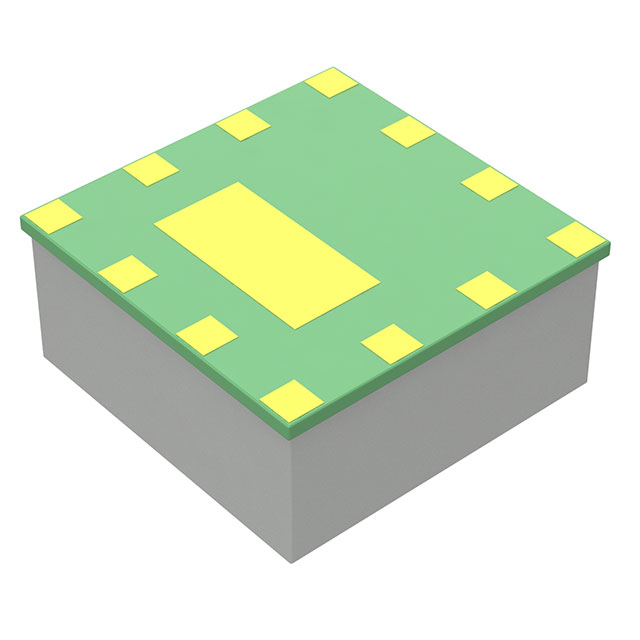

Package / Case	13-PowerBLGA Module
Package Length	15 mm
Package Name	13-LGA
Package Width	15 mm
Size / Dimension Height	0.24 in
Size / Dimension Length	0.59 in
Size / Dimension Width	0.59 in
Type	Non-Isolated PoL Module
Voltage - Input (Max)	15 V
Voltage - Input (Min)	9 V
Voltage - Output 1	3.3 V

MEZDPD3603 Series

Part	Type	Applications	Number of Outputs	Features	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Mounting Type	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Input (Min)	Voltage - Input (Max)	Current - Output (Max)	Package Name	Package Length	Package Width	Efficiency	Voltage - Output 1
Monolithic Power Systems Inc. MEZDPD3603A-85BA	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 in	0.63 in	Through Hole	12-DIP Module	-40 °C	85 °C	4.5 V	36 V
Monolithic Power Systems Inc. MEZDPD3603AS-84F7	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP SCP	0.24 in	0.59 in	0.59 in	Surface Mount	13-PowerBLGA Module	-40 °C	85 °C	20 V	28 V	1 A	13-LGA	15 mm	15 mm	93.2 %	5 V
Monolithic Power Systems Inc. MEZDPD3603AS-84E8	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP SCP	0.24 in	0.59 in	0.59 in	Surface Mount	13-PowerBLGA Module	-40 °C	85 °C	9 V	15 V	2 A	13-LGA	15 mm	15 mm	93.2 %	3.3 V
Monolithic Power Systems Inc. MEZDPD3603A-84E0	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 in	0.63 in	Through Hole	12-DIP Module	-40 °C	85 °C	20 V	28 V	3 A					12 V
Monolithic Power Systems Inc. MEZDPD3603AS-84F8	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP SCP	0.24 in	0.59 in	0.59 in	Surface Mount	13-PowerBLGA Module	-40 °C	85 °C	20 V	28 V	1 A	13-LGA	15 mm	15 mm	93.2 %	12 V
Monolithic Power Systems Inc. MEZDPD3603A-8544	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 in	0.63 in	Through Hole	12-DIP Module	-40 °C	85 °C	4.5 V	36 V
Monolithic Power Systems Inc. MEZDPD3603A-84EC	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 in	0.63 in	Through Hole	12-DIP Module	-40 °C	85 °C	20 V	28 V	2 A					12 V
Monolithic Power Systems Inc. MEZDPD3603AS-84F4	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP SCP	0.24 in	0.59 in	0.59 in	Surface Mount	13-PowerBLGA Module	-40 °C	85 °C	9 V	15 V	1 A	13-LGA	15 mm	15 mm	93.2 %	3.3 V
Monolithic Power Systems Inc. MEZDPD3603A-84DC	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 in	0.63 in	Through Hole	12-DIP Module	-40 °C	85 °C	9 V	15 V	3 A					3.3 V
Monolithic Power Systems Inc. MEZDPD3603A-0001	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 in	0.63 in	Through Hole	12-DIP Module	-40 °C	85 °C	4.5 V	36 V	3 A				90 %	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

mEZDPD3603A

MEZDPD3603AS-84F4 | Datasheet
