W3280-12PG-535

Active

Conxall/Switchcraft

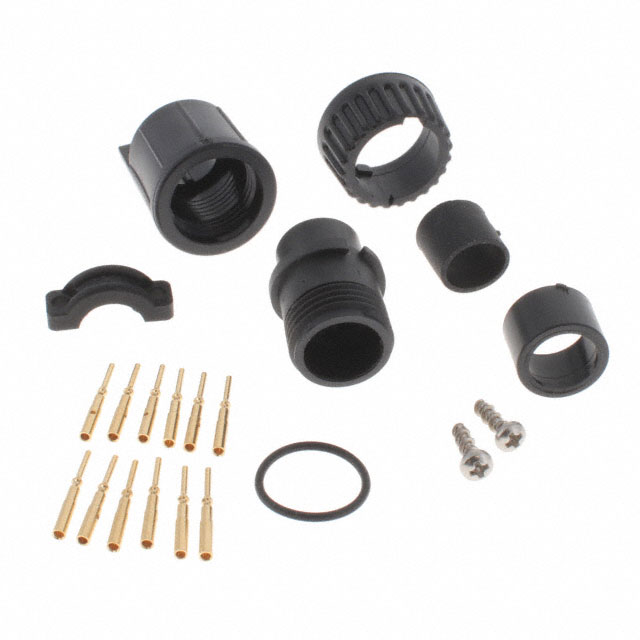

CONN PLUG MALE 12POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

W3280-12PG-535

Active

Conxall/Switchcraft

CONN PLUG MALE 12POS GOLD CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.93
		10	$ 10.34
		25	$ 10.00

Description

General part information

W3280 Series

12 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W3280-12PG-535	W3280 Series

Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [Max] [diameter]	0.4 in	0.23 - 0.4 in
Cable Opening [Max] [diameter]	10.16 mm	8.13 - 10.16 mm
Cable Opening [Min] [diameter]	8.89 mm	3.05 - 8.89 mm
Cable Opening [Min] [diameter]	0.35 in	0.12 - 0.35 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	12	10 - 12
Orientation	E	E
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

W3280 Series

CONN PLUG MALE 12POS GOLD CRIMP

Part	Mounting Type	Number of Positions	Fastening Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Features	Backshell Material, Plating	Voltage Rating	Contact Finish - Mating	Ingress Protection	Primary Material	Insert Material	Connector Type	Orientation	Contact Material	Termination	Color	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft W3280-12PG-535	Free Hanging (In-Line)	12	Bayonet Lock	8.89 mm	0.4 in	10.16 mm	0.35 in	Backshell, Cable Clamp, Coupling Nut	Thermoplastic	600 V	Gold	IP67 - Dust Tight, Waterproof	Plastic	Thermoplastic	Male Pins, Plug	E	Brass	Crimp	Black	Unshielded
Conxall/Switchcraft W3280-12SG-521	Free Hanging (In-Line)	12	Bayonet Lock	5.33 mm	0.23 in		0.21 in	Backshell, Cable Clamp, Coupling Nut	Thermoplastic	600 V	Gold	IP67 - Dust Tight, Waterproof	Plastic	Thermoplastic	Female Sockets, Plug	E	Brass	Crimp	Black	Unshielded	5.84 mm
Conxall/Switchcraft W3280-12SG-524	Free Hanging (In-Line)	12	Bayonet Lock	6.1 mm	0.27 in		0.24 in	Backshell, Cable Clamp, Coupling Nut	Thermoplastic	600 V	Gold	IP67 - Dust Tight, Waterproof	Plastic	Thermoplastic	Female Sockets, Plug	E	Brass	Crimp	Black	Unshielded	6.86 mm
Conxall/Switchcraft W3280-10SG-318	Free Hanging (In-Line)	10	Bayonet Lock					Backshell, Coupling Nut	Thermoplastic	600 V	Gold	IP67 - Dust Tight, Waterproof	Plastic	Thermoplastic	Female Sockets, Plug	E	Brass	Crimp	Black	Unshielded		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft W3280-10SG-535	Free Hanging (In-Line)	10	Bayonet Lock	8.89 mm	0.4 in	10.16 mm	0.35 in	Backshell, Cable Clamp, Coupling Nut	Thermoplastic	600 V	Gold	IP67 - Dust Tight, Waterproof	Plastic	Thermoplastic	Female Sockets, Plug	E	Brass	Crimp	Black	Unshielded
Conxall/Switchcraft W3280-10PG-3DC	Free Hanging (In-Line)	10	Bayonet Lock	3.05 mm	0.24 in		0.12 in	Backshell, Coupling Nut	Thermoplastic	600 V	Gold	IP67 - Dust Tight, Waterproof	Plastic	Thermoplastic	Male Pins, Plug	E	Brass	Crimp	Black	Unshielded	6.1 mm
Conxall/Switchcraft W3280-11PG-330	Free Hanging (In-Line)	11	Bayonet Lock	7.62 mm	0.32 in	8.13 mm	0.3 in	Backshell, Coupling Nut	Thermoplastic	600 V	Gold	IP67 - Dust Tight, Waterproof	Plastic	Thermoplastic	Male Pins, Plug	E	Brass	Crimp	Black	Unshielded
Conxall/Switchcraft W3280-10PG-530	Free Hanging (In-Line)	10	Bayonet Lock	7.62 mm	0.32 in	8.13 mm	0.3 in	Backshell, Cable Clamp, Coupling Nut	Thermoplastic	600 V	Gold	IP67 - Dust Tight, Waterproof	Plastic	Thermoplastic	Male Pins, Plug	E	Brass	Crimp	Black	Unshielded
Conxall/Switchcraft W3280-11PG-321	Free Hanging (In-Line)	11	Bayonet Lock	5.33 mm	0.23 in		0.21 in	Backshell, Coupling Nut	Thermoplastic	600 V	Gold	IP67 - Dust Tight, Waterproof	Plastic	Thermoplastic	Male Pins, Plug	E	Brass	Crimp	Black	Unshielded	5.84 mm
Conxall/Switchcraft W3280-12SG-324	Free Hanging (In-Line)	12	Bayonet Lock	6.1 mm	0.27 in		0.24 in	Backshell, Coupling Nut	Thermoplastic	600 V	Gold	IP67 - Dust Tight, Waterproof	Plastic	Thermoplastic	Female Sockets, Plug	E	Brass	Crimp	Black	Unshielded	6.86 mm
