45230-600230

Active

3M (TC)

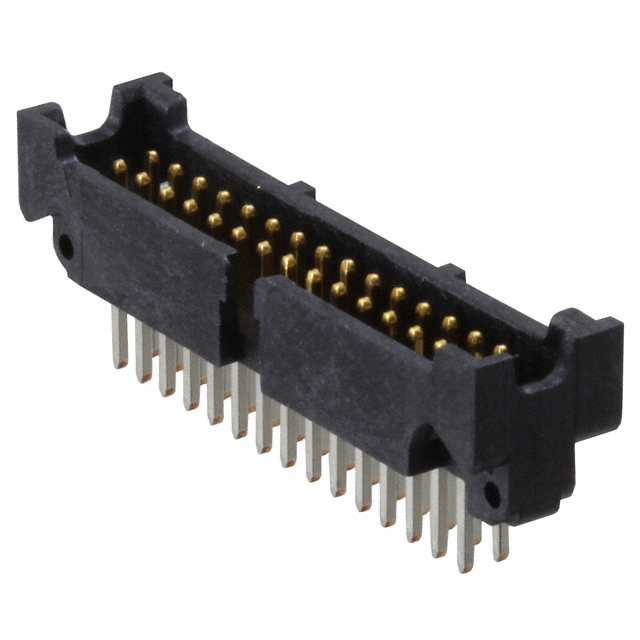

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 30 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

Documents451, 452 Series Product Spec Datasheet +2

45230-600230

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 30 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Documents451, 452 Series Product Spec Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45230-600230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Height	5.65 mm
Insulation Height	0.222 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	8.13 mm, 7.21 mm, 6.6 mm, 5.84 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

45230 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Number of Positions Loaded	Fastening Type	Insulation Height	Insulation Height	Material Flammability Rating	Style	Insulation Material	Contact Length - Post	Contact Length - Post	Features	Termination	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Mounting Type	Connector Type	Number of Rows	Contact Material	Mated Stacking Heights	Voltage Rating	Contact Finish Thickness - Mating
3M (TC) 45230-600230	0.05 in	1.27 mm	Male Pin	Gold	125 °C	-65 ░C	Shrouded - 4 Wall	All	Push-Pull	5.65 mm	0.222 "	UL94 V-0	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	0.094 in	2.4 mm	Keying Slot	Solder	Tin	0.05 in	1.27 mm	30	200 µin	5.08 µm	30 Áin	0.76 Ám	Square	Through Hole	Header	2	Copper Alloy	5.84 mm 6.6 mm 7.21 mm 8.13 mm	125 VDC
3M (TC) 45230-200200	0.05 in	1.27 mm	Male Pin	Gold	125 °C	-65 ░C	Shrouded - 4 Wall	All	Push-Pull	5.65 mm	0.222 "	UL94 V-0	Board to Cable/Wire	Liquid Crystal Polymer (LCP)			Keying Slot Pick and Place	Solder	Tin	0.05 in	1.27 mm	30	100 µin	2.54 µm			Square	Surface Mount	Header	2	Copper Alloy	5.84 mm 6.6 mm 7.21 mm 8.13 mm	125 VDC	Flash
3M (TC) 45230-220230	0.05 in	1.27 mm	Male Pin	Gold	125 °C	-65 ░C	Shrouded - 4 Wall	All	Latch Lock/Eject Hooks Short	5.65 mm	0.222 "	UL94 V-0	Board to Cable/Wire	Liquid Crystal Polymer (LCP)			Keying Slot Pick and Place	Solder	Tin	0.05 in	1.27 mm	30	200 µin	5.08 µm	30 Áin	0.76 Ám	Square	Surface Mount	Header	2	Copper Alloy	5.84 mm 6.6 mm 7.21 mm 8.13 mm	125 VDC
3M (TC) 45230-520200	0.05 in	1.27 mm	Male Pin	Gold	125 °C	-65 ░C	Shrouded - 4 Wall	All	Latch Lock/Eject Hooks Short	5.33 mm	0.21 in	UL94 V-0	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	0.094 in	2.4 mm	Keying Slot	Solder	Tin	0.05 in	1.27 mm	30	100 µin	2.54 µm			Square	Through Hole Right Angle	Header	2	Copper Alloy		125 VDC	Flash
3M (TC) 4523001C90S
3M (TC) 45230-620230	0.05 in	1.27 mm	Male Pin	Gold	125 °C	-65 ░C	Shrouded - 4 Wall	All	Latch Lock/Eject Hooks Short	5.65 mm	0.222 "	UL94 V-0	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	0.094 in	2.4 mm	Keying Slot	Solder	Tin	0.05 in	1.27 mm	30	200 µin	5.08 µm	30 Áin	0.76 Ám	Square	Through Hole	Header	2	Copper Alloy	5.84 mm 6.6 mm 7.21 mm 8.13 mm	125 VDC
3M (TC) 45230-220200	0.05 in	1.27 mm	Male Pin	Gold	125 °C	-65 ░C	Shrouded - 4 Wall	All	Latch Lock/Eject Hooks Short	5.65 mm	0.222 "	UL94 V-0	Board to Cable/Wire	Liquid Crystal Polymer (LCP)			Keying Slot Pick and Place	Solder	Tin	0.05 in	1.27 mm	30	100 µin	2.54 µm			Square	Surface Mount	Header	2	Copper Alloy	5.84 mm 6.6 mm 7.21 mm 8.13 mm	125 VDC	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.61
		10	$ 4.30
		80	$ 3.47
Newark	Each	100	$ 5.45
		250	$ 4.80
		500	$ 4.66
		1000	$ 3.96

Description

General part information

45230 Series

Connector Header Through Hole 30 position 0.050" (1.27mm)

Documents

Technical documentation and resources

45230-600230

Deep-Dive with AI

45230-600230

Deep-Dive with AI

Technical Specifications

45230 Series

Pricing

Description

45230 Series

Documents

451, 452 Series Product Spec

Datasheet

Technical Data Sheet EN

Drawing EN

45230 Series
