T1220160120-000
ActiveTE Connectivity AMP Connectors
H16B-TG-M20
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T1220160120-000
ActiveTE Connectivity AMP Connectors
H16B-TG-M20
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T1220160120-000 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H16B |
| Size / Dimension [x] | 93.5 mm |
| Size / Dimension [x] | 3.681 " |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 60 mm |
| Size / Dimension [z] | 2.362 " |
| Style | Top Entry |
| Thread Size | M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.34 | |
| 10 | $ 6.64 | |||
| 25 | $ 6.46 | |||
| 50 | $ 6.22 | |||
| 100 | $ 6.18 | |||
T1220 Series
H16B-TG-M20
| Part | Size | Style | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Thread Size | Ingress Protection | Connector Type | Lock Location | Housing Material | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1220160120-000 | H16B | Top Entry | 125 °C | -40 °C | Powder Coated | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | M20 | IP65 - Dust Tight, Water Resistant | Hood | Locking Clip (2) on Base Bottom | Aluminum Alloy, Die Cast | Gray |
Description
General part information
T1220 Series

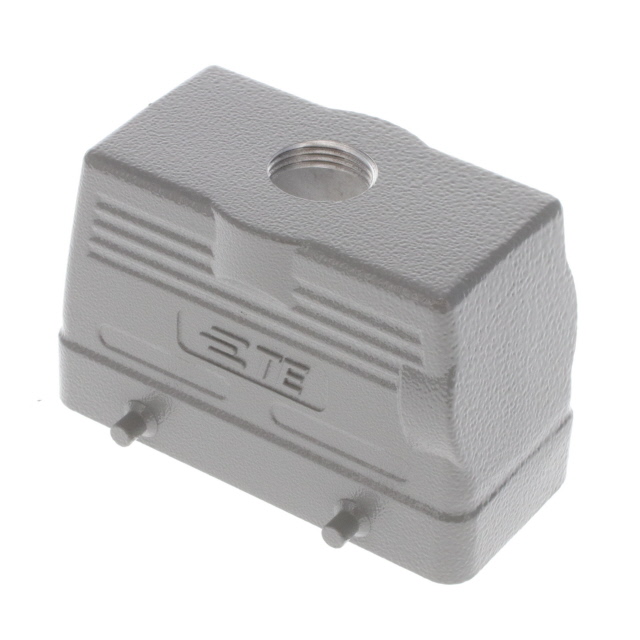

Hood Connector Top Entry M20 H16B IP65 - Dust Tight, Water Resistant
