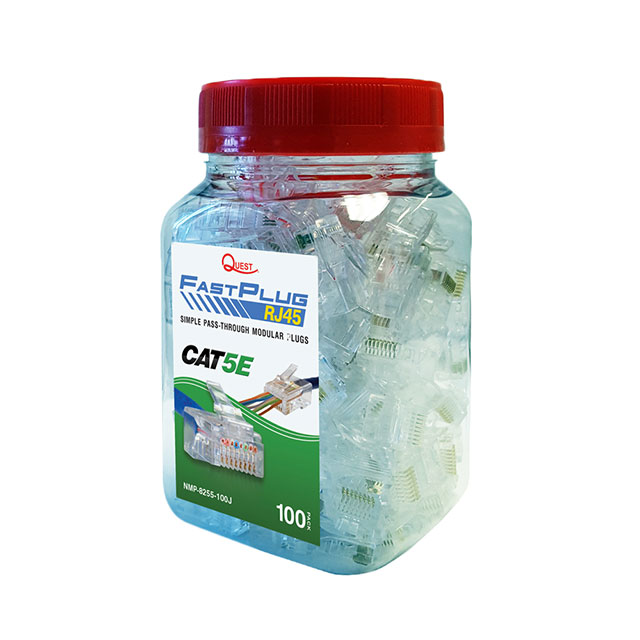

NMP-8255-100J

Active

Quest Technology International Inc.

FASTPLUG RJ45 PASSTHROUGH MODUL

Search across all available documentation for this part.

Active

Quest Technology International Inc.

FASTPLUG RJ45 PASSTHROUGH MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	NMP-8255-100J

Cable Type	Round Cable, Solid, Stranded Wires
Color	Clear
Connector Type	Plug
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Housing Material	Polycarbonate (PC)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5e
Shield Material	Copper Alloy
Shielding	Unshielded
Termination	IDC
Voltage Rating	250 VDC
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	24 AWG

FASTPLUG RJ45 PASSTHROUGH MODUL

Part	Shield Material	Contact Material	Voltage Rating	Connector Type	Color	Cable Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Housing Material	Termination	Shielding	Number of Positions/Contacts	Ratings	Current Rating (Amps)
Quest Technology International Inc. NMP-8255-100J	Copper Alloy	Copper Alloy	250 VDC	Plug	Clear	Round Cable, Solid, Stranded Wires	24 AWG	26 AWG	Gold	Polycarbonate (PC)	IDC	Unshielded	8p8c (RJ45, Ethernet)	Cat5e	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat5e IDC
