HR14D1A11BW1-11-PMVV1

Active

Carling Technologies

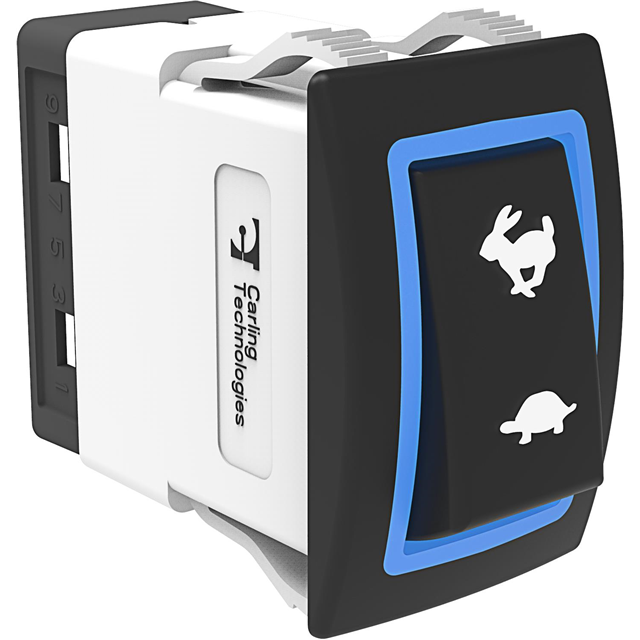

SWITCH ROCKER SPDT 20A 12V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH ROCKER SPDT 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	HR14D1A11BW1-11-PMVV1

Actuator Marking	Fast - Slow, Vertical
Actuator Type	Flat - Illuminated
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Blue/White
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [x]	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - DC	12 V

SWITCH ROCKER SPDT 20A 12V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Mechanical Life	Voltage Rating - DC	Actuator Marking	Switch Function	Illumination Voltage (Nominal)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Actuator Type	Termination Style	Current Rating (Amps)	Ingress Protection	Electrical Life	Illumination Type, Color
Carling Technologies HR14D1A11BW1-11-PMVV1	Panel Mount, Snap-In	85 °C	-40 °C	Black	200000 Cycles	12 V	Fast - Slow, Vertical	On-On	12 VDC	21.08 mm	36.83 mm	SPDT	Flat - Illuminated	Quick Connect - 0.110" (2.8mm)	20 A	IP68 - Dust Tight, Waterproof	100000 Cycles	Blue/White, LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 39.77

General part information

Rocker Switch SPDT 20A (DC) Panel Mount, Snap-In
