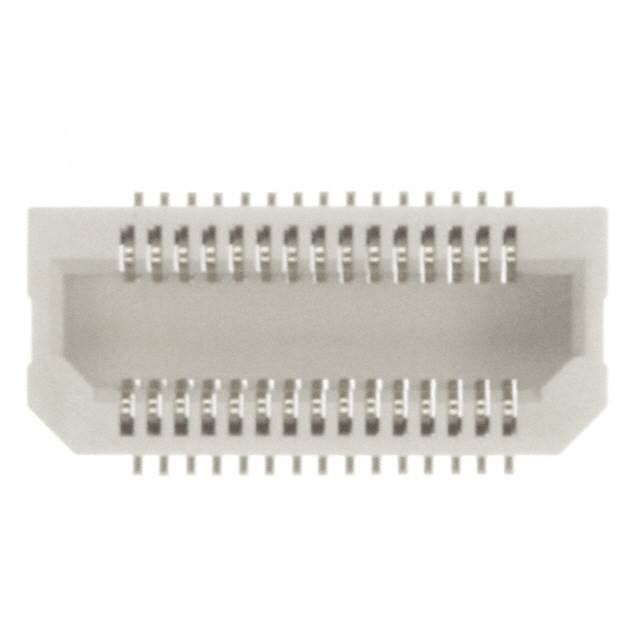

AXK5S30347YG

Active

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK5S30347YG

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Height Above Board	0.238 in
Height Above Board	6.05 mm
Mated Stacking Heights	9 mm, 7 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Number of Positions	Mounting Type	Contact Finish	Number of Rows
Panasonic Electric Works AXK5S30347YA	Socket Center Strip Contacts	7 mm 8 mm 9 mm	0.5 mm	0.02 in	0.238 in	6.05 mm	30	Surface Mount	Gold	2
Panasonic Electric Works AXK5S30347YG	Socket Center Strip Contacts	7 mm 8 mm 9 mm	0.5 mm	0.02 in	0.238 in	6.05 mm	30	Surface Mount	Gold	2
