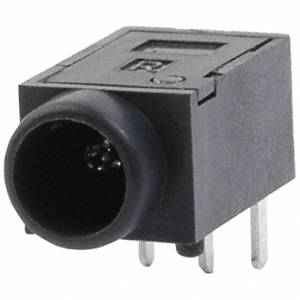

PJ-040D
ActiveCUI Devices
CONN PWR JACK 1.3X3.4MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-040D
ActiveCUI Devices
CONN PWR JACK 1.3X3.4MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-040D |
|---|---|
| Actual Diameter [custom] | 0.051 in |
| Actual Diameter [custom] | 3.8 mm |
| Actual Diameter [custom] | 1.3 mm |
| Actual Diameter [custom] | 0.15 in |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Brass |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 2 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [custom] | 0.138 in |
| Industry Recognized Mating Diameter [custom] | 3.5 mm |
| Industry Recognized Mating Diameter [custom] | 1.3 mm |
| Industry Recognized Mating Diameter [custom] | 0.051 in |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth [custom] | 8 mm |
| Mating Length/Depth [custom] | 0.315 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.80 | |
| 10 | $ 0.70 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.58 | |||
| 450 | $ 0.50 | |||
| 900 | $ 0.45 | |||
| 1350 | $ 0.41 | |||
| 2700 | $ 0.38 | |||
Description
General part information
PJ-040 Series
Power Barrel Connector Jack 1.30mm ID (0.051"), 3.50mm OD (0.138") Through Hole, Right Angle
