5-1969352-2
ActiveTE Connectivity Raychem Cable Protection

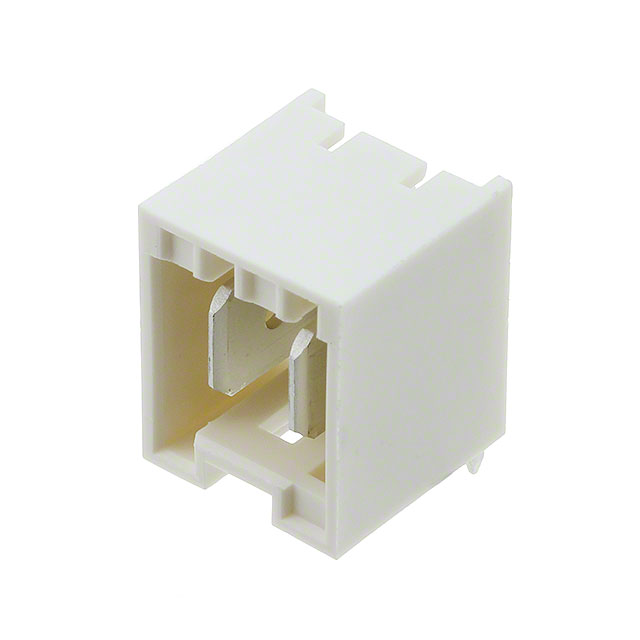

CONN HEADER R/A 2POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-1969352-2
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER R/A 2POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-1969352-2 |
|---|---|
| Applications | General Purpose |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 150 Áin |
| Contact Finish Thickness - Mating | 3.81 Ám |
| Contact Finish Thickness - Post | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám |
| Contact Material | Brass |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Fastening Type | Latch Holder |
| Features | Glow Wire Compliant |
| Insulation Height | 0.656 in |
| Insulation Height | 16.65 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 5 mm |
| Pitch - Mating | 0.197 " |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
RAST 5 IDC Connectors Series
Power to the Board MONO-SHAPE MK I TAB CONN ASSY
...
| Part | Number of Rows | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Insulation Material | Connector Type | Contact Termination | Note | Mounting Type | Fastening Type | Color | Contact Shape | Applications | Contact Finish - Post | Voltage Rating | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Termination | Number of Positions Loaded | Material Flammability Rating | Features | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Style | Insulation Height | Insulation Height | Contact Finish | Cable Termination | Wire Type | Contact Length - Post | Contact Length - Post | Insulation Color | Tab Length [x] | Tab Length [x] | Length - Overall [x] | Length - Overall [x] | Insulation | Tab Thickness | Tab Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Gender | Tab Width | Tab Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 1 | Female Socket | -40 °C | 105 ░C | 5 mm | 0.197 in | Polyamide (PA6) Nylon 6 | Receptacle | Crimp | Contacts Not Included | Free Hanging (In-Line) | Latch Lock | Natural | |||||||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Tab | -40 °C | 120 °C | Polyamide (PA66) Nylon 6/6 | Header | Through Hole Right Angle | Latch Holder | Rectangular | General Purpose | Tin | 250 VAC | 2 | 150 Áin | 3.81 Ám | Brass | Solder | All | UL94 V-2 | Glow Wire Compliant | 5 mm | 0.197 " | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Board to Cable/Wire | 0.656 in | 16.65 mm | ||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Female Socket | -40 °C | 105 ░C | 5 mm | 0.197 in | Polyamide (PA66) Nylon 6/6 | Receptacle | Crimp | Contacts Not Included | Free Hanging (In-Line) | Locking Ramp | Natural | 6 | ||||||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Blade Pin | 5 mm | 0.197 in | Receptacle | Free Hanging (In-Line) | Latch Lock | Natural | 4 | Dual Wire Exit | Tin | IDC | Discrete | |||||||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Female Socket | -40 °C | 105 ░C | 5 mm | 0.197 in | Polyamide (PA6) Nylon 6 | Receptacle | Crimp | Contacts Not Included | Free Hanging (In-Line) | Latch Lock | Natural | |||||||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Tab | -40 °C | 120 °C | Nylon Polyamide (PA) | Header | Through Hole | Latch Holder | Rectangular | General Purpose | Tin | 250 VAC | 8 | Copper Alloy | Solder | All | UL94 V-0 | Board Guide Glow Wire Compliant | 5 mm | 0.197 " | Shrouded - 4 Wall | Board to Cable/Wire | 0.504 in | 12.8 mm | 3.5 mm | 0.138 in | Natural | |||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Female Socket | 5 mm | 0.197 in | Polyamide (PA66) Nylon 6/6 | Receptacle | Crimp | Contacts Not Included | Free Hanging (In-Line) | Latch Lock | Natural | 2 | ||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Tab | -40 °C | 120 °C | Nylon Polyamide (PA) | Header | Through Hole | Latch Holder | Rectangular | General Purpose | Tin | 250 VAC | Copper Alloy | Solder | All | UL94 V-0 | Board Guide Glow Wire Compliant | 5 mm | 0.197 " | Shrouded - 4 Wall | Board to Cable/Wire | 0.504 in | 12.8 mm | 3.5 mm | 0.138 in | Natural | ||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Tab | -40 °C | 120 °C | Nylon Polyamide (PA) | Header | Through Hole | Latch Holder | Rectangular | General Purpose | Tin | 250 VAC | 2 | Copper Alloy | Solder | All | UL94 V-0 | Board Guide Glow Wire Compliant | 5 mm | 0.197 " | Shrouded - 4 Wall | Board to Cable/Wire | 0.504 in | 12.8 mm | 3.5 mm | 0.138 in | Natural | |||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Brass | Crimp | 7.44 mm | 0.293 in | 0.771 in | 19.58 mm | Non-Insulated | 0.032 in | 0.81 mm | 22 AWG | 17.5 AWG | Standard | 2.79 mm | 0.11 " | 1.52 mm | 0.06 in | Female | 6.35 mm | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.44 | |
| 10 | $ 1.19 | |||
| 80 | $ 1.01 | |||
| 440 | $ 0.88 | |||
| 945 | $ 0.82 | |||
| 4900 | $ 0.72 | |||
| 10000 | $ 0.68 | |||
Description
General part information
RAST 5 IDC Connectors Series
Power to the Board MONO-SHAPE MK I TAB CONN ASSY
Documents
Technical documentation and resources
