8280-5SG-315

Active

Conxall/Switchcraft

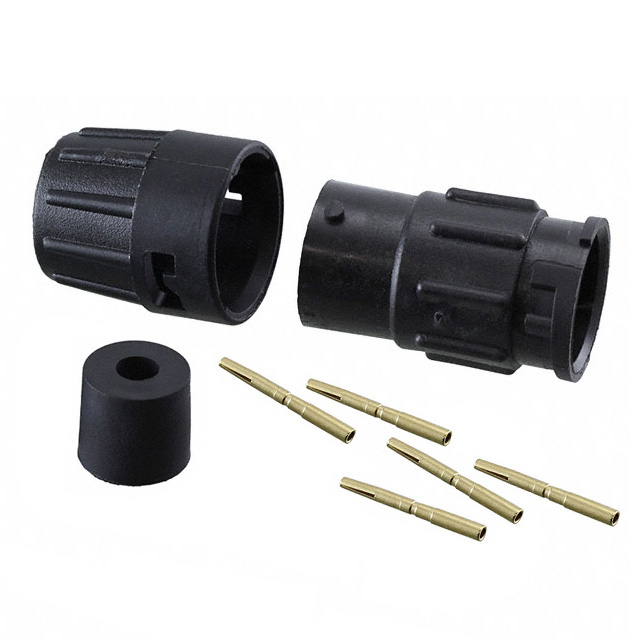

CONN RCPT FMALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8280-5SG-315

Active

Conxall/Switchcraft

CONN RCPT FMALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.39
		10	$ 5.75
		25	$ 5.41
		50	$ 5.27
		100	$ 5.14
		300	$ 4.89

Description

General part information

8280-5SG Series

5 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8280-5SG-315	8280-5SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [custom]	0.17 in, 0.15 in	0.15 - 0.17 in
Cable Opening [custom]	3.81 mm, 4.32 mm	3.81 - 4.32 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

8280-5SG Series

CONN RCPT FMALE 5POS GOLD CRIMP

Part	Shielding	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Features	Ingress Protection	Mounting Type	Voltage Rating	Color	Contact Finish - Mating	Contact Material	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating	Applications	Current Rating (Amps)	Orientation	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 8280-5SG-311	Unshielded	Receptacle, Female Sockets	-40 °C	115 °C	Bayonet Lock	Backshell	Weathertight	Free Hanging (In-Line)	600 V	Black	Gold	Brass	Crimp	2.29 mm	0.09 in, 0.14 in	3.56 mm	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Keyed	Plastic
Conxall/Switchcraft 8280-5SG-318	Unshielded	Receptacle, Female Sockets	-40 °C	115 °C	Bayonet Lock	Backshell	Weathertight	Free Hanging (In-Line)	600 V	Black	Gold	Brass	Crimp				Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Keyed	Plastic	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 8280-5SG-3DC	Unshielded	Receptacle, Female Sockets	-40 °C	115 °C	Bayonet Lock	Backshell	Weathertight	Free Hanging (In-Line)	600 V	Black	Gold	Brass	Crimp				Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Keyed	Plastic
Conxall/Switchcraft 8280-5SG-315	Unshielded	Receptacle, Female Sockets	-40 °C	115 °C	Bayonet Lock	Backshell	Weathertight	Free Hanging (In-Line)	600 V	Black	Gold	Brass	Crimp				Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Keyed	Plastic					0.15 in, 0.17 in	3.81 mm, 4.32 mm
