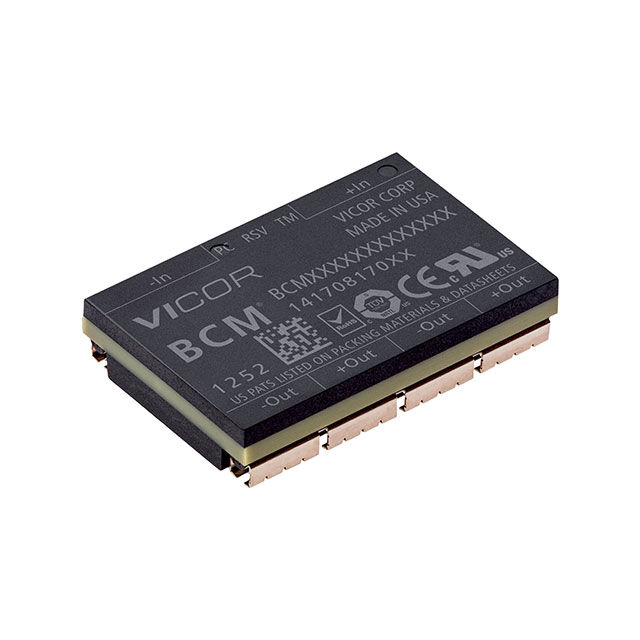

BCM384F480T325B00

Active

Vicor Corporation

DC DC CONVERTER 48V 325W

Search across all available documentation for this part.

Active

Vicor Corporation

DC DC CONVERTER 48V 325W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bus Converter Module DC DC Converter 1 Output 48V 7.05A 360V - 400V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 48V 325W

Part	Type	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Voltage - Input (Max) [Max]	Voltage - Output 1	Features	Applications	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Power (Watts)	Mounting Type	Approval Agency
Vicor Corporation BCM384F480T325B00	Bus Converter Module	4.242 kV	7.05 A	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	Module	400 V	48 V	OCP, OTP, OVP, SCP, UVLO	ITE (Commercial)	1	360 V	125 °C	-40 °C	95 %	325 W	Surface Mount
Vicor Corporation BCM384T120T300A00	Bus Converter Module	4.242 kV	27.7 A	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	Module	400 V	12 V	OCP, OTP, OVP, SCP, UVLO	ITE (Commercial)	1	360 V	125 °C	-40 °C	95.5 %	300 W	Through Hole
Vicor Corporation BCM384T480T325B00	Bus Converter Module	4.242 kV	7.05 A	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	Module	400 V	48 V	OCP, OTP, OVP, SCP, UVLO	ITE (Commercial)	1	360 V	125 °C	-40 °C	95 %	325 W	Through Hole	CE, cURus, TUV
Vicor Corporation BCM384P120T1K5ACR	Bus Converter Module	4.242 kV	125 A	7.3 mm	0.29 "	2.4 in	25.1 mm	0.99 in	61 mm	24-DIP Module	410 V	12 V	OCP, OTP, OVP, SCP, UVLO	ITE (Commercial)	1	260 V	125 °C	-40 °C	97.4 %	1500 W	Through Hole
Vicor Corporation BCM384P120M1K5AC0
Vicor Corporation BCM384P120T800AC0	Bus Converter Module	4.242 kV	68 A	7.3 mm	0.29 "	2.4 in	25.1 mm	0.99 in	61 mm	24-DIP Module	410 V	12 V	OCP, OTP, OVP, SCP, UVLO	ITE (Commercial)	1	260 V	125 °C	-40 °C		800 W	Through Hole
