651882-BB-0N

Active

Carling Technologies

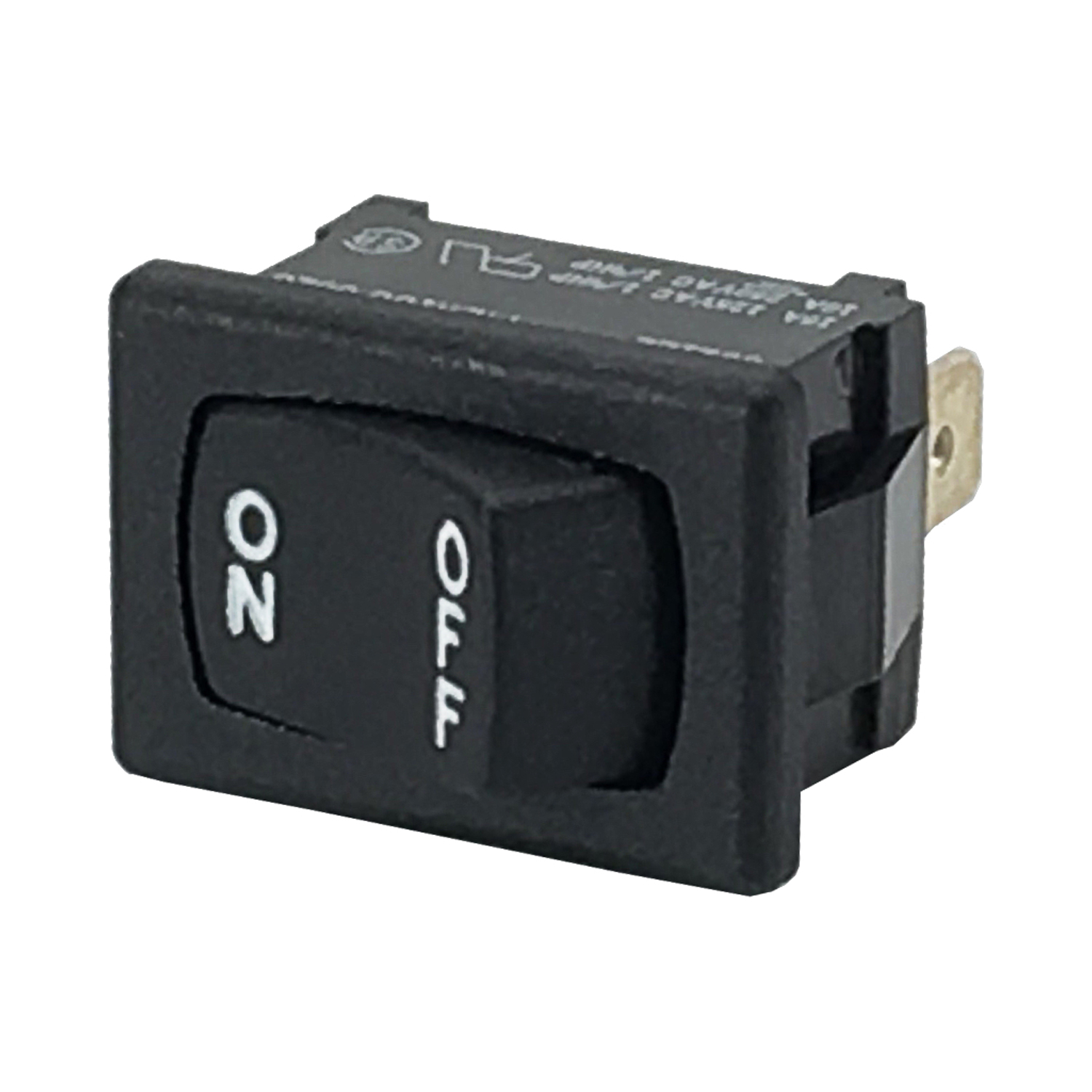

SWITCH ROCKER SPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

651882-BB-0N

Active

Carling Technologies

SWITCH ROCKER SPDT 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	15	$ 7.51

Description

General part information

651882 Series

Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	651882-BB-0N	651882 Series

Actuator Marking	No Marking	No Marking, - O =, O -
Actuator Type	Concave (Curved)	Concave (Curved)
Approval Agency	CSA, UL	CSA, UL
Circuit	SPDT	SPDT
Color - Actuator/Cap	Black	White, Red, Black
Current Rating (Amps)	10 A	10 A
Electrical Life	50000 Cycles	50000 Cycles
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions	Rectangular	Rectangular
Panel Cutout Dimensions [x]	19.2 mm	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm	12.9 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V

651882 Series

SWITCH ROCKER SPDT 10A 125V

Part	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Approval Agency	Mechanical Life	Actuator Marking	Switch Function	Termination Style	Current Rating (Amps)	Electrical Life	Circuit	Actuator Type	Voltage Rating - AC	Color - Actuator/Cap	Operating Temperature [Max]
Carling Technologies 651882-WW-0N	Panel Mount, Snap-In	12.9 mm	Rectangular	19.2 mm	CSA, UL	100000 Cycles	No Marking	Mom-Off-Mom	Quick Connect - 0.187" (4.7mm)	10 A	50000 Cycles	SPDT	Concave (Curved)	125 V	White	85 °C
Carling Technologies 651882-WB-GN	Panel Mount, Snap-In	12.9 mm	Rectangular	19.2 mm	CSA, UL	100000 Cycles	- O =	Mom-Off-Mom	Quick Connect - 0.187" (4.7mm)	10 A	50000 Cycles	SPDT	Concave (Curved)	125 V	White	85 °C
Carling Technologies 651882-WW-9V	Panel Mount, Snap-In	12.9 mm	Rectangular	19.2 mm	CSA, UL	100000 Cycles	O -	Mom-Off-Mom	Quick Connect - 0.187" (4.7mm)	10 A	50000 Cycles	SPDT	Concave (Curved)	125 V	Red, White	85 °C
Carling Technologies 651882-RB-0N	Panel Mount, Snap-In	12.9 mm	Rectangular	19.2 mm	CSA, UL	100000 Cycles	No Marking	Mom-Off-Mom	Quick Connect - 0.187" (4.7mm)	10 A	50000 Cycles	SPDT	Concave (Curved)	125 V	Red	85 °C
Carling Technologies 651882-BB-9W	Panel Mount, Snap-In	12.9 mm	Rectangular	19.2 mm	CSA, UL	100000 Cycles	O -	Mom-Off-Mom	Quick Connect - 0.187" (4.7mm)	10 A	50000 Cycles	SPDT	Concave (Curved)	125 V	Black	85 °C
Carling Technologies 651882-WB-0N	Panel Mount, Snap-In	12.9 mm	Rectangular	19.2 mm	CSA, UL	100000 Cycles	No Marking	Mom-Off-Mom	Quick Connect - 0.187" (4.7mm)	10 A	50000 Cycles	SPDT	Concave (Curved)	125 V	White	85 °C
Carling Technologies 651882-BB-0N	Panel Mount, Snap-In	12.9 mm	Rectangular	19.2 mm	CSA, UL	100000 Cycles	No Marking	Mom-Off-Mom	Quick Connect - 0.187" (4.7mm)	10 A	50000 Cycles	SPDT	Concave (Curved)	125 V	Black	85 °C
