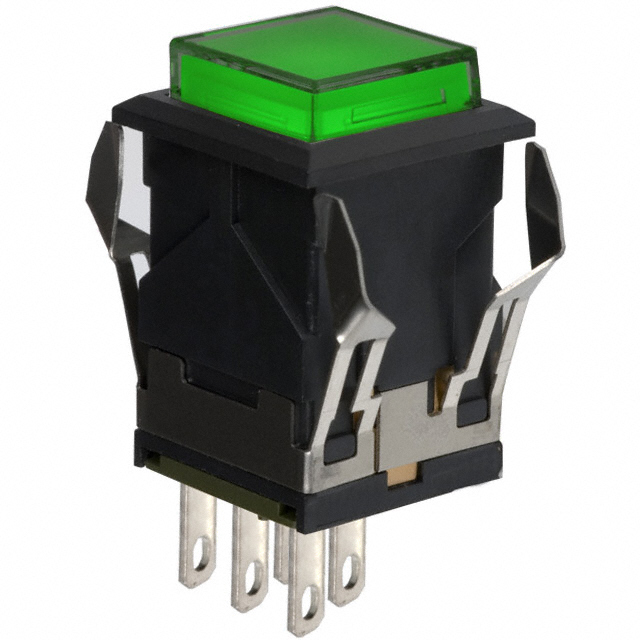

LB16SKW01-5F-JF - LB15SKW01-5F-JF-RO, LB16SKW01-5F-JF-RO

LB16SKW01-5F-JF

Active
NKK Switches

PUSHBUTTON SWITCH, LB SERIES, SPDT, ON-ON, SQUARE, TRANSPARENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetLB Series Datasheet+1
LB16SKW01-5F-JF - LB15SKW01-5F-JF-RO, LB16SKW01-5F-JF-RO

LB16SKW01-5F-JF

Active
NKK Switches

PUSHBUTTON SWITCH, LB SERIES, SPDT, ON-ON, SQUARE, TRANSPARENT

Deep-Dive with AI

DocumentsDatasheetLB Series Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationLB16SKW01-5F-JF
Actuator MarkingNo Marking
Actuator TypeButton, Square
CircuitSPDT
Color - Actuator/CapClear
Current Rating (Amps)3 A
Electrical Life100000 Cycles
Illumination Type, ColorLED, Green
Illumination Voltage (Nominal)2.1 VDC
Mechanical Life200000 Cycles
Mounting TypePanel Mount, Snap-In
Operating Temperature [Max]50 °C
Operating Temperature [Min]-25 °C
Panel Cutout Dimensions [x]16.2 mm
Panel Cutout Dimensions [y]16.2 mm
Switch FunctionOn-On
Termination Style0.11 in
Termination StyleQuick Connect, Solder
Termination Style2.8 mm
TypeIlluminated, Standard
Voltage Rating - AC125 V
Voltage Rating - DC30 V

LB16SKW01 Series

PartCircuitIllumination Type, ColorSwitch FunctionCurrent Rating (Amps)Panel Cutout Dimensions [x]Panel Cutout Dimensions [y]Operating Temperature [Max]Operating Temperature [Min]Color - Actuator/CapMounting TypeVoltage Rating - DCActuator MarkingIllumination Voltage (Nominal)Electrical LifeMechanical LifeTypeActuator TypeVoltage Rating - ACTermination StyleTermination StyleTermination Style
NKK Switches
LB16SKW01-1C-A
SPDT
LED
Red
On-On
3 A
16.2 mm
16.2 mm
50 °C
-25 °C
Black
Panel Mount
Snap-In
30 V
No Marking
1.9 VDC
100000 Cycles
200000 Cycles
Illuminated
Standard
Button
Square
125 V
0.11 in
Quick Connect
Solder
2.8 mm
NKK Switches
LB16SKW01-5C12-JB
SPDT
LED
Red
On-On
3 A
16.2 mm
16.2 mm
50 °C
-25 °C
Clear
Panel Mount
Snap-In
30 V
No Marking
12 VDC
100000 Cycles
200000 Cycles
Illuminated
Standard
Button
Square
125 V
0.11 in
Quick Connect
Solder
2.8 mm
NKK Switches
LB16SKW01-5D12-JD
SPDT
Amber
LED
On-On
3 A
16.2 mm
16.2 mm
50 °C
-25 °C
Clear
Panel Mount
Snap-In
30 V
No Marking
12 VDC
100000 Cycles
200000 Cycles
Illuminated
Standard
Button
Square
125 V
0.11 in
Quick Connect
Solder
2.8 mm
NKK Switches
LB16SKW01-6F-JB
SPDT
Green
LED
On-On
3 A
16.2 mm
16.2 mm
50 °C
-25 °C
Clear
Panel Mount
Snap-In
30 V
No Marking
3.3 VDC
100000 Cycles
200000 Cycles
Illuminated
Standard
Button
Square
125 V
0.11 in
Quick Connect
Solder
2.8 mm
NKK Switches
LB16SKW01-5C12-JC
SPDT
LED
Red
On-On
3 A
16.2 mm
16.2 mm
50 °C
-25 °C
Clear (Red Filter/Diffuser)
Panel Mount
Snap-In
30 V
No Marking
12 VDC
100000 Cycles
200000 Cycles
Illuminated
Standard
Button
Square
125 V
0.11 in
Quick Connect
Solder
2.8 mm
NKK Switches
LB16SKW01-5F-JF
SPDT
Green
LED
On-On
3 A
16.2 mm
16.2 mm
50 °C
-25 °C
Clear
Panel Mount
Snap-In
30 V
No Marking
2.1 VDC
100000 Cycles
200000 Cycles
Illuminated
Standard
Button
Square
125 V
0.11 in
Quick Connect
Solder
2.8 mm
NKK Switches
LB16SKW01-5F24-JB
SPDT
Green
LED
On-On
3 A
16.2 mm
16.2 mm
50 °C
-25 °C
Clear
Panel Mount
Snap-In
30 V
No Marking
24 V
100000 Cycles
200000 Cycles
Illuminated
Standard
Button
Square
125 V
0.11 in
Quick Connect
Solder
2.8 mm
NKK Switches
LB16SKW01-6G-JB
SPDT
Blue
LED
On-On
3 A
16.2 mm
16.2 mm
50 °C
-25 °C
Clear
Panel Mount
Snap-In
30 V
No Marking
3.6 VDC
100000 Cycles
200000 Cycles
Illuminated
Standard
Button
Square
125 V
0.11 in
Quick Connect
Solder
2.8 mm
NKK Switches
LB16SKW01-5D-JD
SPDT
Amber
LED
On-On
3 A
16.2 mm
16.2 mm
50 °C
-25 °C
Clear
Panel Mount
Snap-In
30 V
No Marking
2 VDC
100000 Cycles
200000 Cycles
Illuminated
Standard
Button
Square
125 V
0.11 in
Quick Connect
Solder
2.8 mm
NKK Switches
LB16SKW01-CF-A
SPDT
Green/Red
LED
On-On
3 A
16.2 mm
16.2 mm
50 °C
-25 °C
Black
Panel Mount
Snap-In
30 V
No Marking
2 VDC
2.2 VDC
100000 Cycles
200000 Cycles
Illuminated
Standard
Button
Square
125 V
0.11 in
Quick Connect
Solder
2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 14.56
10$ 13.05
25$ 12.48
50$ 11.83
100$ 11.40
250$ 10.68
500$ 9.90
1000$ 8.88
NewarkEach 1$ 31.86
5$ 30.26
10$ 28.05
25$ 25.59
50$ 22.14
100$ 20.67
250$ 18.82

Description

General part information

LB16SKW01 Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
