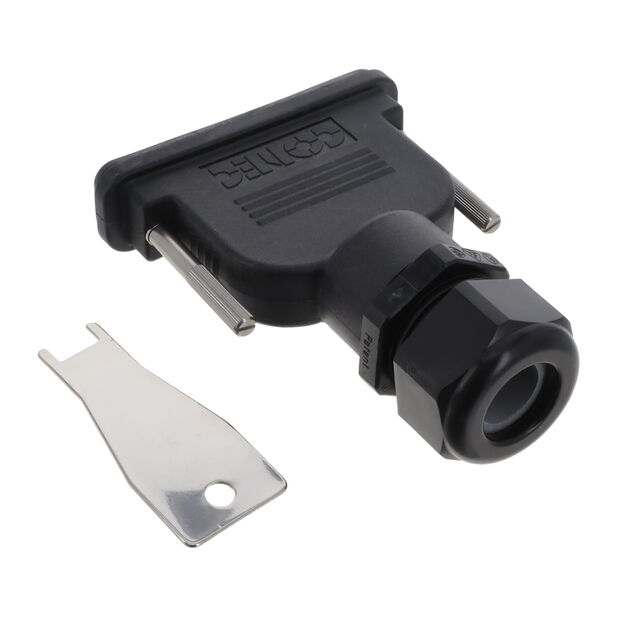

165X14849X

Active

Amphenol CONEC

37 POS WATER RES HOOD LONG SCR

Search across all available documentation for this part.

Active

Amphenol CONEC

37 POS WATER RES HOOD LONG SCR

Technical Specifications

Parameters and characteristics for this part

Specification	165X14849X

Accessory Type	One Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	37pos, HD62pos
Compatible Shell Size	C
Features	Mating Screws 4-40, Dust Tight/Waterproof (IP67)
Material	Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions	37
Primary Material	Plastic
Shielding	Unshielded

Part	Compatible D-Sub Size	Accessory Type	Cable Type	Number of Positions	Material	Features	Cable Exit	Shielding	Primary Material	Color	Compatible Shell Size
Amphenol CONEC 165X14879X	15pos HD26pos	Two Piece Backshell	Round	15	Polybutylene Terephthalate (PBT) Glass Filled	Mating Screws 4-40	180 °	Unshielded	Plastic	Black	A
Amphenol CONEC 165X14849X	37pos HD62pos	One Piece Backshell	Round	37	Polybutylene Terephthalate (PBT) Glass Filled	Dust Tight/Waterproof (IP67) Mating Screws 4-40	180 °	Unshielded	Plastic	Black	C
Amphenol CONEC 165X14859X	50pos HD78pos	Two Piece Backshell	Round	50	Polybutylene Terephthalate (PBT) Glass Filled	Mating Screws 4-40	180 °	Unshielded	Plastic	Black	D
Amphenol CONEC 165X14889X	25pos HD44pos	Two Piece Backshell	Round		Polybutylene Terephthalate (PBT) Glass Filled	Mating Screws 4-40	180 °	Unshielded	Plastic	Black	B
Amphenol CONEC 165X14869X	9pos HD15pos	One Piece Backshell	Round	9	Polybutylene Terephthalate (PBT) Glass Filled		180 °	Unshielded	Plastic		E

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position One Piece Backshell Connector Black 180° Unshielded
