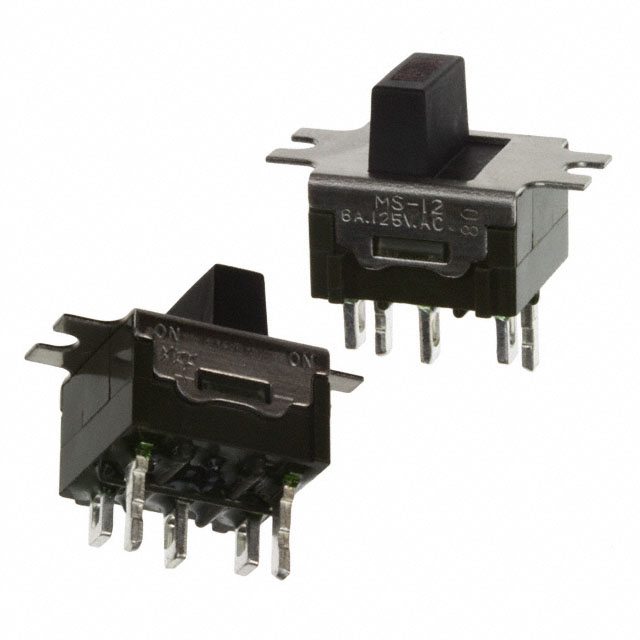

MS12LFW01C

Obsolete

NKK Switches

SWITCH SLIDE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH SLIDE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MS12LFW01C

Actuator Length [z]	5.1 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Type	Illuminated
Circuit	SPDT
Contact Finish	Silver
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Switch Travel [custom]	2.2 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Termination Style	Voltage Rating - AC	Actuator Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Mechanical Life	Current Rating (Amps)	Actuator Length [z]	Switch Travel [custom]	Contact Timing	Circuit	Contact Finish	Features	Electrical Life	Contact Material
NKK Switches MS12LFW01C	Solder Lug	125 V	Illuminated	On-On	-30 ░C	85 °C	Polybutylene Terephthalate (PBT) Glass Filled	100000 Cycles	6 A	5.1 mm	2.2 mm	Non-Shorting	SPDT	Silver	Epoxy Sealed Terminals	25000 Steps	Silver Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPDT Panel Mount
