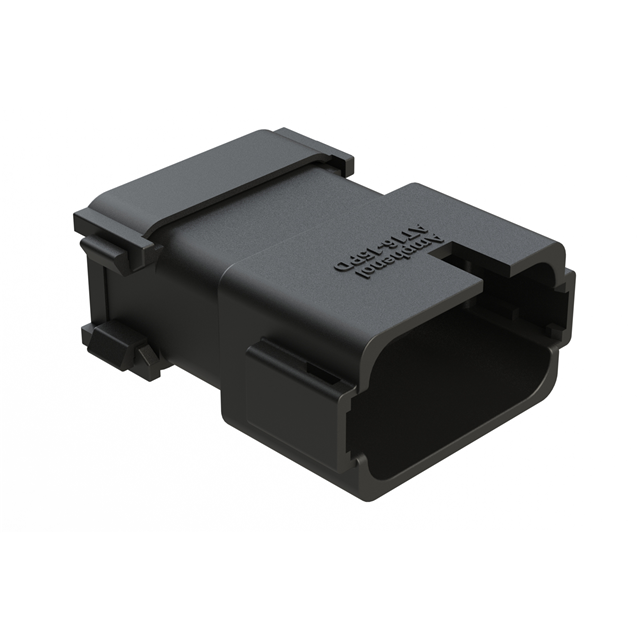

AT16-15PD-K003

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 15POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AT Series 15 Pos

AT16-15PD-K003

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 15POS

Deep-Dive with AI

DocumentsDatasheet AT Series 15 Pos

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT16-15PD-K003

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	IP68, Cap (Cover), IP69K, Reduced Wire Seals
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT16 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Note	Connector Type	Color	Contact Termination	Insulation Material	Features	Contact Type	Fastening Type	Number of Rows
Amphenol Sine Systems Corp AT16-15SE-EK02	-55 °C	125 °C	15	Free Hanging (In-Line)	Contacts Not Included	Plug	Gray	Crimp	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Female Socket	Latch Lock	3
Amphenol Sine Systems Corp AT16-15SD-EK02	-55 °C	125 °C	15	Free Hanging (In-Line)	Contacts Not Included	Plug	Gray	Crimp	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Female Socket	Latch Lock	3
Amphenol Sine Systems Corp AT16-15PB-K003	-55 °C	125 °C	15	Free Hanging (In-Line)	Contacts Not Included	Receptacle	Black	Crimp	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Male Pin	Latch Holder	3
Amphenol Sine Systems Corp AT16-15PA-EK02	-55 °C	125 °C	15	Free Hanging (In-Line)	Contacts Not Included	Receptacle	Gray	Crimp	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Male Pin	Latch Holder	3
Amphenol Sine Systems Corp AT16-15PC-K003	-55 °C	125 °C	15	Free Hanging (In-Line)	Contacts Not Included	Receptacle	Black	Crimp	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Male Pin	Latch Holder	3
Amphenol Sine Systems Corp AT16-15PD-EK02	-55 °C	125 °C	15	Free Hanging (In-Line)	Contacts Not Included	Receptacle	Brown	Crimp	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Male Pin	Latch Holder	3
Amphenol Sine Systems Corp AT16-15PD-K003	-55 °C	125 °C	15	Free Hanging (In-Line)	Contacts Not Included	Receptacle	Black	Crimp	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Male Pin	Latch Holder	3
Amphenol Sine Systems Corp AT16-15SA-K003	-55 °C	125 °C	15	Free Hanging (In-Line)	Contacts Not Included	Plug	Black	Crimp	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Female Socket	Latch Lock	3
Amphenol Sine Systems Corp AT16-15PE-K003	-55 °C	125 °C	15	Free Hanging (In-Line)	Contacts Not Included	Receptacle	Black	Crimp	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Male Pin	Latch Holder	3
Amphenol Sine Systems Corp AT16-15SA-EK02	-55 °C	125 °C	15	Free Hanging (In-Line)	Contacts Not Included	Plug	Gray	Crimp	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Female Socket	Latch Lock	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 9.91

Description

General part information

AT16 Series

15 Rectangular Connectors - Housings Receptacle Black

Documents

Technical documentation and resources

Datasheet

AT Series 15 Pos

Datasheet
