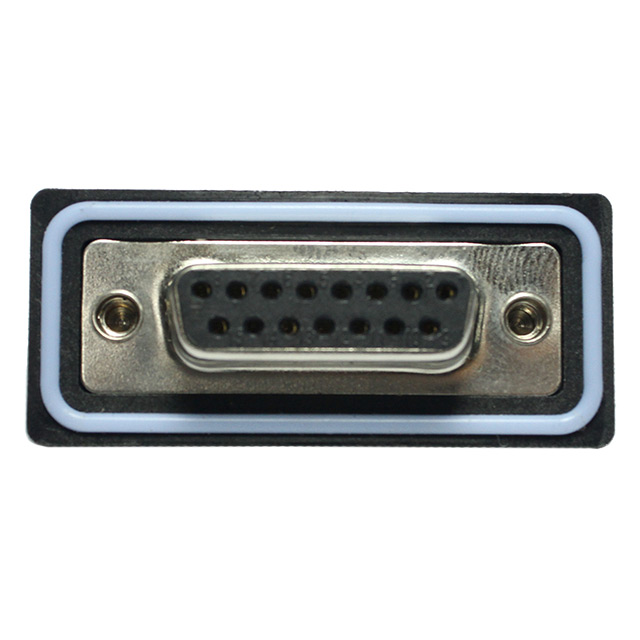

SDB-15PFFS-SL8001

Active

Amphenol LTW

CONN D-SUB RCPT 15POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB RCPT 15POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-15PFFS-SL8001

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP68 - Dust Tight, Waterproof
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

Part	Color	Dielectric Material	Number of Rows	Shell Size, Connector Layout	Current Rating (Amps)	Contact Finish	Flange Feature	Number of Positions	Contact Material	Connector Style	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Ingress Protection	Features	Contact Type	Contact Finish Thickness
Amphenol LTW SDB-15PFFS-SL8001	Black	Polybutylene Terephthalate (PBT)	2	2	5 A	Gold	Female Screwlock (4-40) Mating Side	15	Copper Alloy	D-Sub	22 AWG	26 AWG	Receptacle Female Sockets	-40 °C	105 ░C	Nickel Plated Steel	IP68 - Dust Tight Waterproof	Shielded	Signal
Amphenol LTW SDB-15PFFS-QL8001	Black	Polybutylene Terephthalate (PBT)	2	2	5 A	Gold	Female Screwlock (4-40) Mating Side	15	Copper Alloy	D-Sub	22 AWG	26 AWG	Receptacle Female Sockets	-40 °C	105 ░C	Nickel Plated Steel	IP68 - Dust Tight Waterproof	Automated Latch Gasket Shielded	Signal	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
