345-104-525-812
ActiveEDAC Inc.

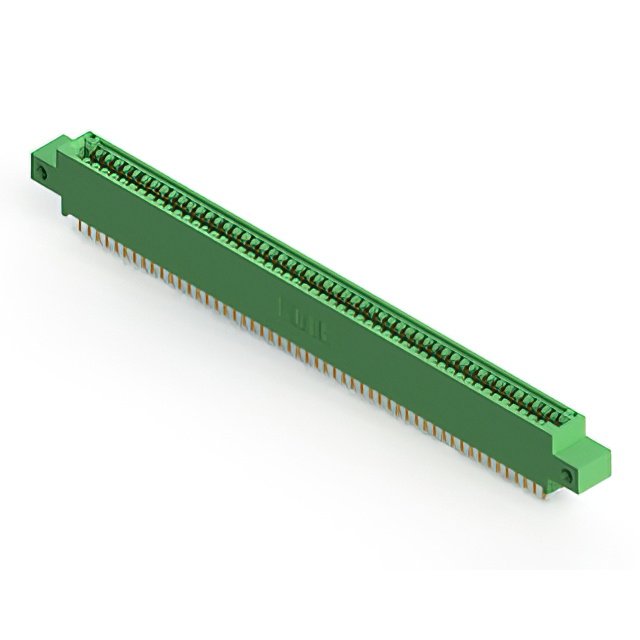

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 104 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-104-525-812
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 104 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-104-525-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 104 |
| Number of Positions/Bay/Row [custom] | 52 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-104 Series
...
| Part | Flange Feature | Termination | Read Out | Contact Finish | Contact Type | Features | Number of Rows | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Color | Card Type | Termination Rows | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Mounting Type | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Solder Eyelet(s) | Dual | Gold | Cantilever | Card Extender | 2 | Female | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | 2 | 52 | 2.54 mm | 0.1 in | Board Edge Straddle Mount | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 104 | ||||
EDAC Inc. | Floating Bobbin Top Mount Opening | Wire Wrap | Dual | Gold | Cantilever | 2 | Female | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | 2 | 52 | 2.54 mm | 0.1 in | Through Hole Right Angle | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 104 | 2.95 mm | 0.116 in | |||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Dual | Gold | Cantilever | Card Guides | 2 | Female | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | 2 | 52 | 2.54 mm | 0.1 in | Through Hole Right Angle | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 104 | ||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Solder | Dual | Gold | Cantilever | 2 | Female | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | 2 | 52 | 2.54 mm | 0.1 in | Board Edge Straddle Mount | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 104 | |||||
EDAC Inc. | Side Mount Opening Unthreaded | Solder | Dual | Gold | Cantilever | 2 | Female | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | 2 | 52 | 2.54 mm | 0.1 in | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 104 | 3.25 mm | 0.128 in | |||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Wire Wrap | Dual | Gold | Cantilever | 2 | Female | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | 2 | 52 | 2.54 mm | 0.1 in | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 104 | |||||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | Dual | Gold | Cantilever | 2 | Female | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | 2 | 52 | 2.54 mm | 0.1 in | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 104 | |||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Solder | Dual | Gold | Cantilever | Card Guides | 2 | Female | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | 2 | 52 | 2.54 mm | 0.1 in | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 104 | ||||
EDAC Inc. | Flush Mount Side Opening Unthreaded | Solder | Dual | Gold | Cantilever | Card Extender | 2 | Female | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | 2 | 52 | 2.54 mm | 0.1 in | Board Edge Straddle Mount | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 104 | 3.25 mm | 0.128 " | ||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Dual | Gold | Cantilever | Card Guides | 2 | Female | -40 °C | 105 ░C | Green | Non Specified - Dual Edge | 2 | 52 | 2.54 mm | 0.1 in | Through Hole | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 104 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-104 Series
104 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
