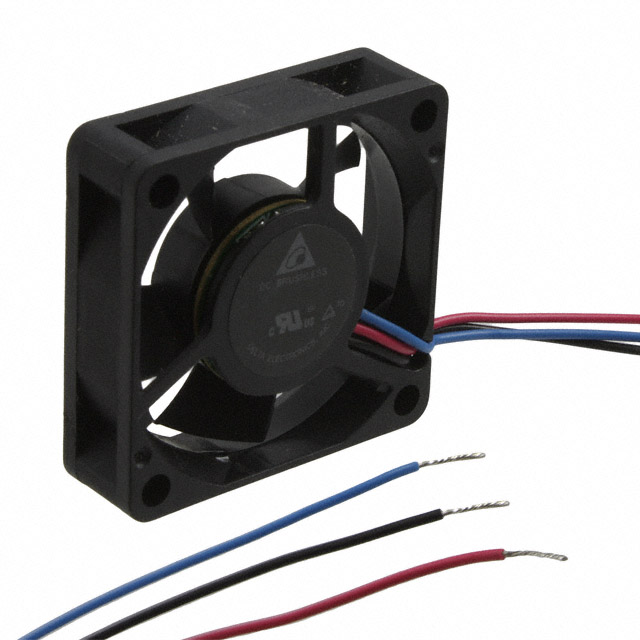

ASB0305MA-CA8Z

Obsolete

Delta Electronics

FAN AXIAL 30X10MM 5VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 30X10MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	ASB0305MA-CA8Z

Air Flow	0.095 m³/min
Air Flow	3.4 CFM
Bearing Type	Sleeve
Current Rating (Amps)	110 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	20000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	23 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	550 mW
RPM	9000 RPM
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Static Pressure	42.3 Pa
Static Pressure	0.17 in H2O
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Weight	7.71 g
Weight	0.017 lb
Width [y]	10 mm

Part	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Static Pressure	Static Pressure	Width [y]	RPM	Noise	Fan Type	Lifetime @ Temp.	Power (Watts)	Features	Size / Dimension [x]	Size / Dimension [z]	Termination	Voltage - Rated	Weight	Weight	Material - Blade
Delta Electronics ASB0305MA-CA8Z	110 mA	Plastic	4.5 V	5.5 V	Sleeve	70 °C	70 °C	-10 °C	-10 °C	0.095 m³/min	3.4 CFM	42.3 Pa	0.17 in H2O	10 mm	9000 RPM	23 dB(A)	Tubeaxial	20000 Hrs	550 mW	Locked Rotor Protection Speed Sensor (Tach)	30 mm	30 mm	3 Wire Leads	5 V	7.71 g	0.017 lb	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 30mm L x 30mm H Sleeve 3.4 CFM (0.095m³/min) 3 Wire Leads
