159150-5002

Active

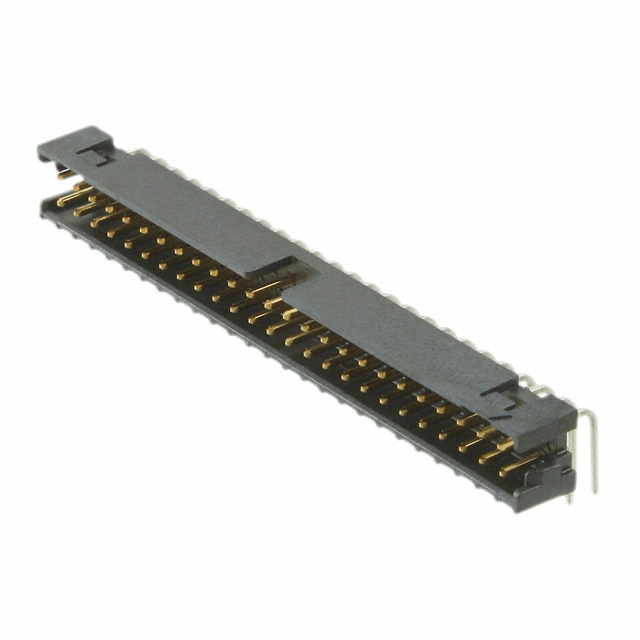

CONN HEADER R/A 50POS 2MM

Search across all available documentation for this part.

Active

CONN HEADER R/A 50POS 2MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 50 position 0.079" (2.00mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	159150-5002	159150 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.61 mm	3.61 mm
Contact Length - Mating	0.142 in	0.142 in
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Detent Lock	Detent Lock
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	0.241 in	0.21 - 0.241 in
Insulation Height	6.13 mm	5.33 - 6.13 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Number of Positions	50	50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	150 VDC	150 VDC

CONN HEADER R/A 50POS 2MM

Part	Number of Positions	Contact Finish - Post	Style	Insulation Color	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Fastening Type	Connector Type	Contact Type	Contact Material	Contact Length - Post	Contact Length - Post	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Shape	Voltage Rating	Shrouding	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Finish - Mating	Material Flammability Rating	Number of Rows
3M 159150-5002	50	Tin	Board to Cable/Wire	Black	Through Hole, Right Angle	0.079 in	2 mm	Solder	Detent Lock	Header	Male Pin	Copper Alloy	2.84 mm	0.112 in	Keying Slot	200 µin	5.08 µm	30 Áin	0.76 Ám	1.25 A	0.079 in	2 mm	105 ░C	-55 °C	0.241 in	6.13 mm	Square	150 VDC	Shrouded - 4 Wall	3.61 mm	0.142 in	All	Gold	UL94 V-0	2
3M 159150-6002	50	Tin	Board to Cable/Wire	Black	Through Hole	0.079 in	2 mm	Solder	Detent Lock	Header	Male Pin	Copper Alloy	2.84 mm	0.112 in	Keying Slot	200 µin	5.08 µm	30 Áin	0.76 Ám	1.25 A	0.079 in	2 mm	105 ░C	-55 °C	0.21 in	5.33 mm	Square	150 VDC	Shrouded - 4 Wall	3.61 mm	0.142 in	All	Gold	UL94 V-0	2
