159150-6002

Active

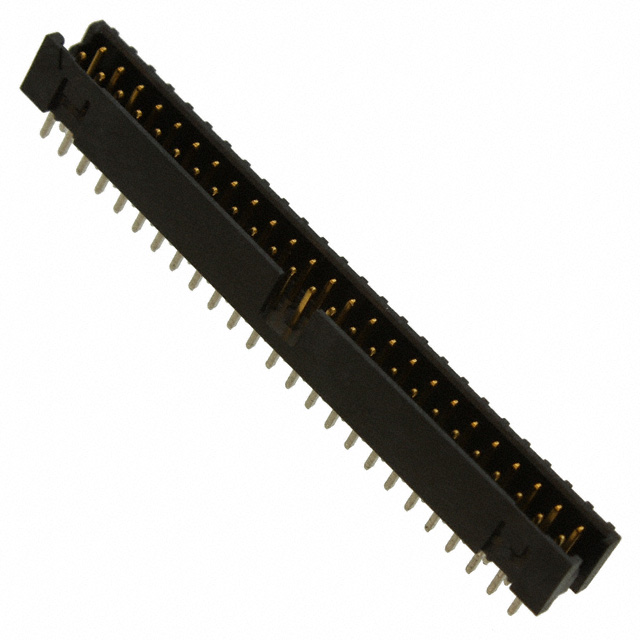

CONN HEADER VERT 50POS 2MM

Search across all available documentation for this part.

Active

CONN HEADER VERT 50POS 2MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.59

General part information

Connector Header Through Hole 50 position 0.079" (2.00mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	159150-6002	159150 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.61 mm	3.61 mm
Contact Length - Mating	0.142 in	0.142 in
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Detent Lock	Detent Lock
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	5.33 mm	5.33 - 6.13 mm
Insulation Height	0.21 in	0.21 - 0.241 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	50	50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	150 VDC	150 VDC

CONN HEADER R/A 50POS 2MM

Part	Number of Positions	Contact Finish - Post	Style	Insulation Color	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Fastening Type	Connector Type	Contact Type	Contact Material	Contact Length - Post	Contact Length - Post	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Shape	Voltage Rating	Shrouding	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Finish - Mating	Material Flammability Rating	Number of Rows
3M 159150-5002	50	Tin	Board to Cable/Wire	Black	Through Hole, Right Angle	0.079 in	2 mm	Solder	Detent Lock	Header	Male Pin	Copper Alloy	2.84 mm	0.112 in	Keying Slot	200 µin	5.08 µm	30 Áin	0.76 Ám	1.25 A	0.079 in	2 mm	105 ░C	-55 °C	0.241 in	6.13 mm	Square	150 VDC	Shrouded - 4 Wall	3.61 mm	0.142 in	All	Gold	UL94 V-0	2
3M 159150-6002	50	Tin	Board to Cable/Wire	Black	Through Hole	0.079 in	2 mm	Solder	Detent Lock	Header	Male Pin	Copper Alloy	2.84 mm	0.112 in	Keying Slot	200 µin	5.08 µm	30 Áin	0.76 Ám	1.25 A	0.079 in	2 mm	105 ░C	-55 °C	0.21 in	5.33 mm	Square	150 VDC	Shrouded - 4 Wall	3.61 mm	0.142 in	All	Gold	UL94 V-0	2
