ST-HDR-2-3-FT
ActiveSchmalzTech, LLC

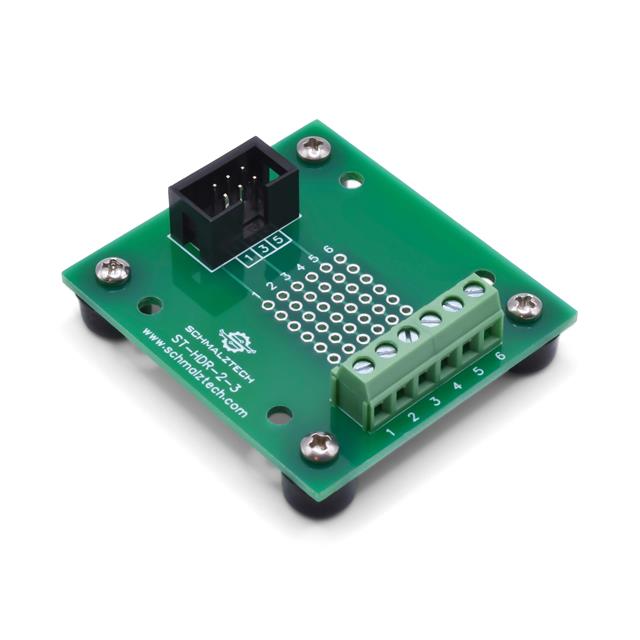

2X3 HEADER BREAKOUT BOARD - IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ST-HDR-2-3-FT | ST-HDR Series |
|---|---|---|
| Board Thickness | 1.6 mm | 1.6 mm |
| Board Thickness | 0.063 in | 0.063 in |
| Material | FR4 Epoxy Glass | FR4 Epoxy Glass |
| Number of Positions | 6 | 6 - 10 |
| Package Accepted | Header | Header |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Proto Board Type | Connector to Terminal Block | Connector to Terminal Block |
| Size / Dimension | - | 2.2 in |
| Size / Dimension | - | 2 " |
| Size / Dimension [x] | 2 in | 2 - 2.4 in |
| Size / Dimension [x] | 50.8 mm | 50.8 - 60.96 mm |
| Size / Dimension [y] | 1.8 in | 1.8 - 2 in |
| Size / Dimension [y] | 45.72 mm | 45.72 - 50.8 mm |
ST-HDR Series
2X3 HEADER BREAKOUT BOARD - IDC
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package Accepted | Number of Positions | Material | Board Thickness | Board Thickness | Pitch [x] | Pitch [x] | Proto Board Type | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SchmalzTech, LLC ST-HDR-2-3-FT | 2 in | 1.8 in | 50.8 mm | 45.72 mm | Header | 6 | FR4 Epoxy Glass | 1.6 mm | 0.063 in | 2.54 mm | 0.1 in | Connector to Terminal Block | ||
SchmalzTech, LLC ST-HDR-2-5-FT | 2.4 in | 2 in | 60.96 mm | 50.8 mm | Header | 10 | FR4 Epoxy Glass | 1.6 mm | 0.063 in | 2.54 mm | 0.1 in | Connector to Terminal Block | ||
SchmalzTech, LLC ST-HDR-2-5-DIN | 2.4 in | 2 in | 60.96 mm | 50.8 mm | Header | 10 | FR4 Epoxy Glass | 1.6 mm | 0.063 in | 2.54 mm | 0.1 in | Connector to Terminal Block | ||
SchmalzTech, LLC ST-HDR-2-4-DIN | 55.88 mm | 50.8 mm | Header | 8 | FR4 Epoxy Glass | 1.6 mm | 0.063 in | 2.54 mm | 0.1 in | Connector to Terminal Block | 2.2 in | 2 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 12.99 | |
| 20 | $ 11.99 | |||
| 100 | $ 10.99 | |||
Description
General part information
ST-HDR Series
2X3 HEADER BREAKOUT BOARD - IDC
