ST-HDR-2-5-DIN

Active

SchmalzTech, LLC

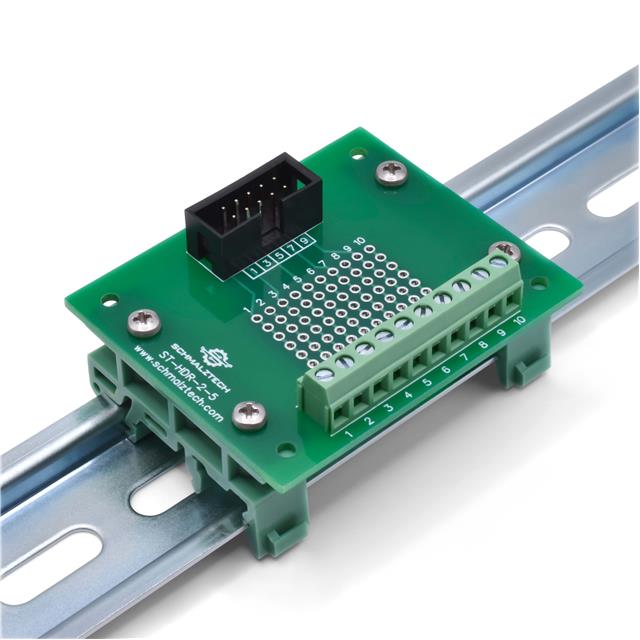

2X5 HEADER BREAKOUT BOARD

Search across all available documentation for this part.

Active

SchmalzTech, LLC

2X5 HEADER BREAKOUT BOARD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2X5 HEADER BREAKOUT BOARD

Technical documentation and resources

Parameters and characteristics commom to parts in this series

2X3 HEADER BREAKOUT BOARD - IDC

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package Accepted	Number of Positions	Material	Board Thickness	Board Thickness	Pitch [x]	Pitch [x]	Proto Board Type	Size / Dimension [x]	Size / Dimension [y]
SchmalzTech, LLC ST-HDR-2-3-FT	2 in	1.8 in	50.8 mm	45.72 mm	Header	6	FR4 Epoxy Glass	1.6 mm	0.063 in	2.54 mm	0.1 in	Connector to Terminal Block
SchmalzTech, LLC ST-HDR-2-5-FT	2.4 in	2 in	60.96 mm	50.8 mm	Header	10	FR4 Epoxy Glass	1.6 mm	0.063 in	2.54 mm	0.1 in	Connector to Terminal Block
SchmalzTech, LLC ST-HDR-2-5-DIN	2.4 in	2 in	60.96 mm	50.8 mm	Header	10	FR4 Epoxy Glass	1.6 mm	0.063 in	2.54 mm	0.1 in	Connector to Terminal Block
SchmalzTech, LLC ST-HDR-2-4-DIN			55.88 mm	50.8 mm	Header	8	FR4 Epoxy Glass	1.6 mm	0.063 in	2.54 mm	0.1 in	Connector to Terminal Block	2.2 in	2 "
